CE Certified Film compacting granulating line Manufacturer, Factory

Integration for one-step process of PP raffia and hard-to-grind material: Cutting, melting extruding, granulating PP raffia, woven, non woven, FIBC/jumbo bags. Blown and cast film star-up lumps, film scraps.

Send Inquiry

Product Description

System Operational Efficiency

Feeding Control: The belt conveyor operation is automated based on the electric current of the Film Compactor/Agglomerator to prevent overload.
Temperature Regulation: Frictional heat generation ensures materials are properly heated, curled, and contracted for smooth extruder entry.
Adjustable Extrusion: Both screw extruder speed and pelletizing speed are fully adjustable based on fed material conditions and desired output.

Advanced Processing Features

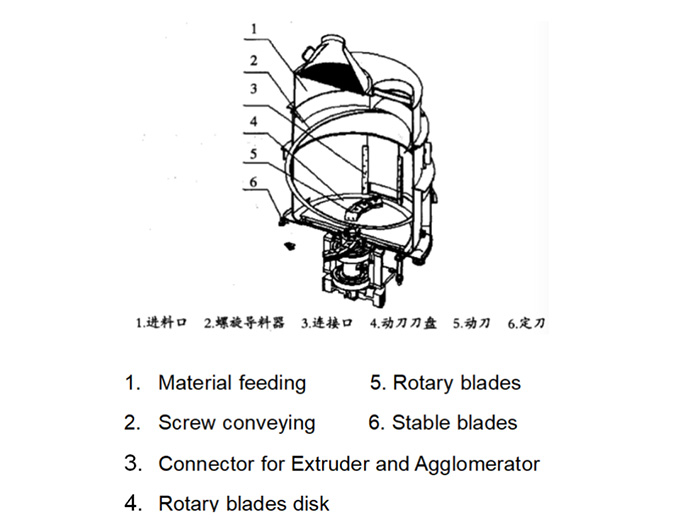

High-speed friction compaction for efficient film processing.
Integrated observation window for easy maintenance and blade replacement.
Streamlined flow path: Crushed material is fed directly into the single-screw extruder.

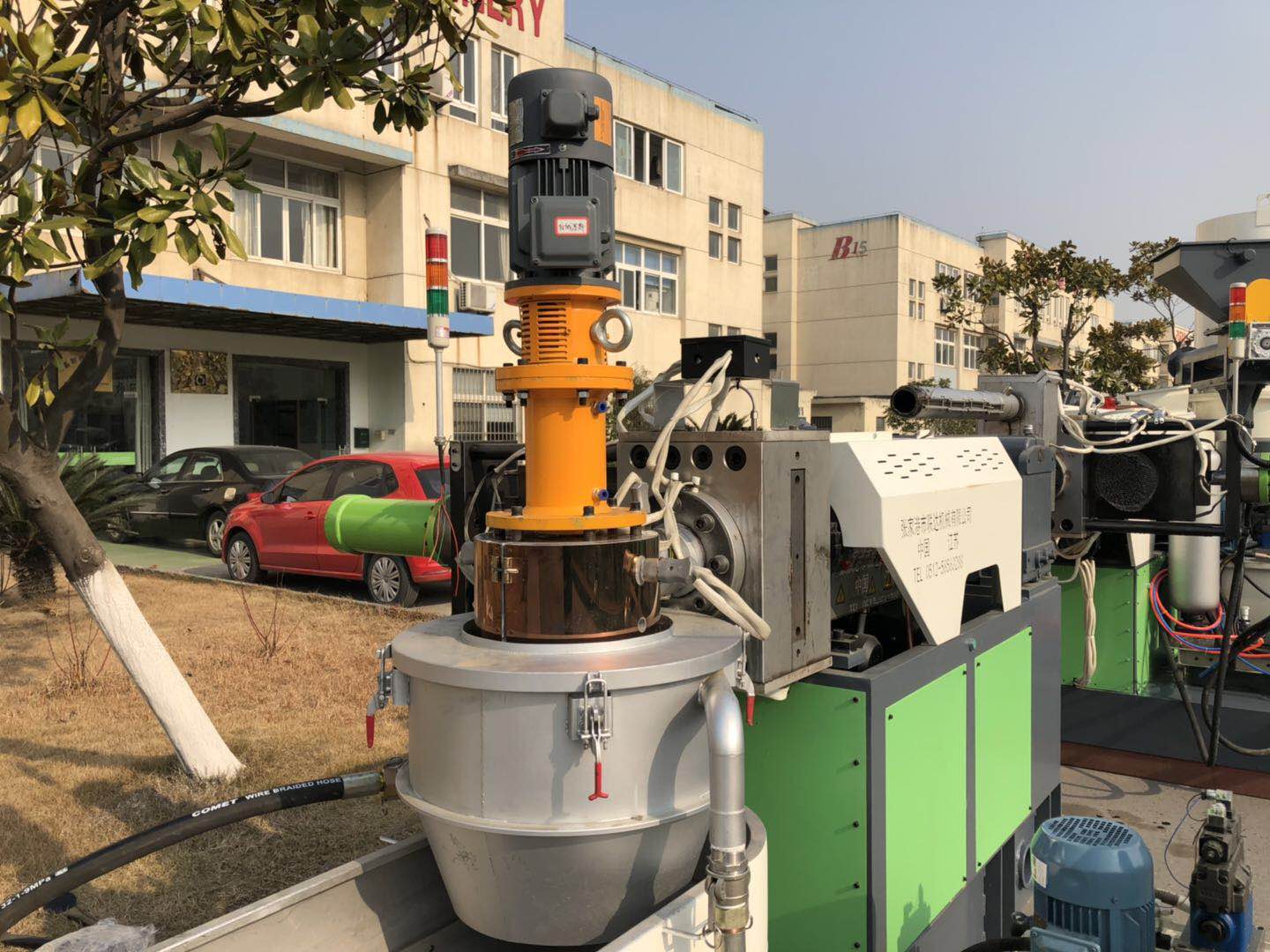

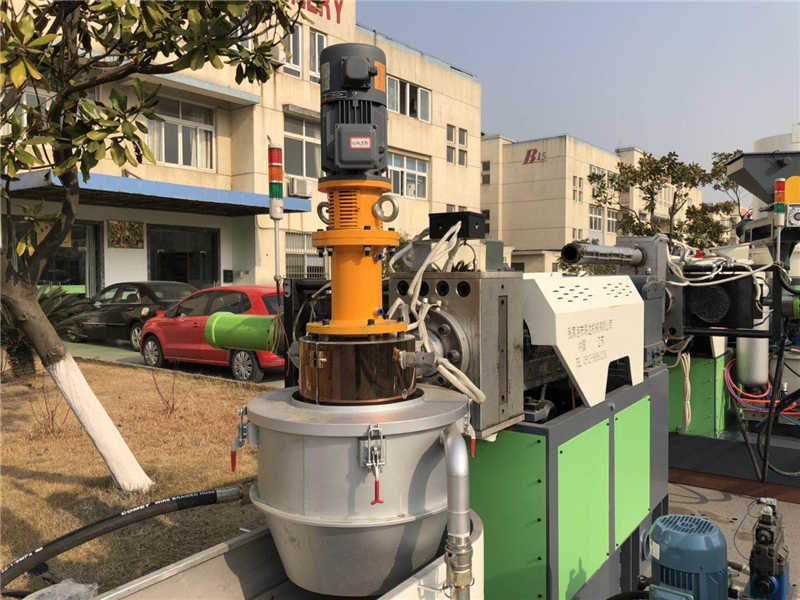

Water-ring pelletizing system with inverter control for precise size management.
Non-stop hydraulic screen changer reduces downtime with automated pressure alerts.

Technical Specifications

Machine Name	Film compacting granulating line
Application Material	HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS
Output Range	100-1200kg/h
Screw Diameter	65-180mm
Cooling Type	Water-cooled

Frequently Asked Questions

Q: Is the pellet size uniform? A: Yes, the system's crushing and compaction technology ensures consistent pellet density and size.

Q: Can I change filters without stopping the machine? A: Yes, the non-stop hydraulic screen changer allows for rapid changes during operation.

Q: What materials can be processed? A: The line is compatible with various plastics including PE, PP, PA, PC, PS, and EPS.

Q: How is the feeding speed controlled? A: The system uses an automated sensor to match conveyor belt speed with compactor current.

Q: Does the system prevent strand breakage? A: The water-ring pelletizing method avoids traditional strand-cutting issues by cutting pellets directly at the die head.
