Top 10 Plastic Bottle Granulating line Manufacturer, Supplier

Application for pre-crushed, hard/rigid regrind scraps such as bottles,milk bottles, pipes, containers and lumps in the form of granules. Applicable materials are mainly HDPE, LDPE, PP, PA, PC, PU, PBU, ABS and others.

Send Inquiry

Product Description

Machine Name	Plastic Bottle/Small hollow plastic/Blue barrel granulating line
Final Product	Plastic Pellets/granule

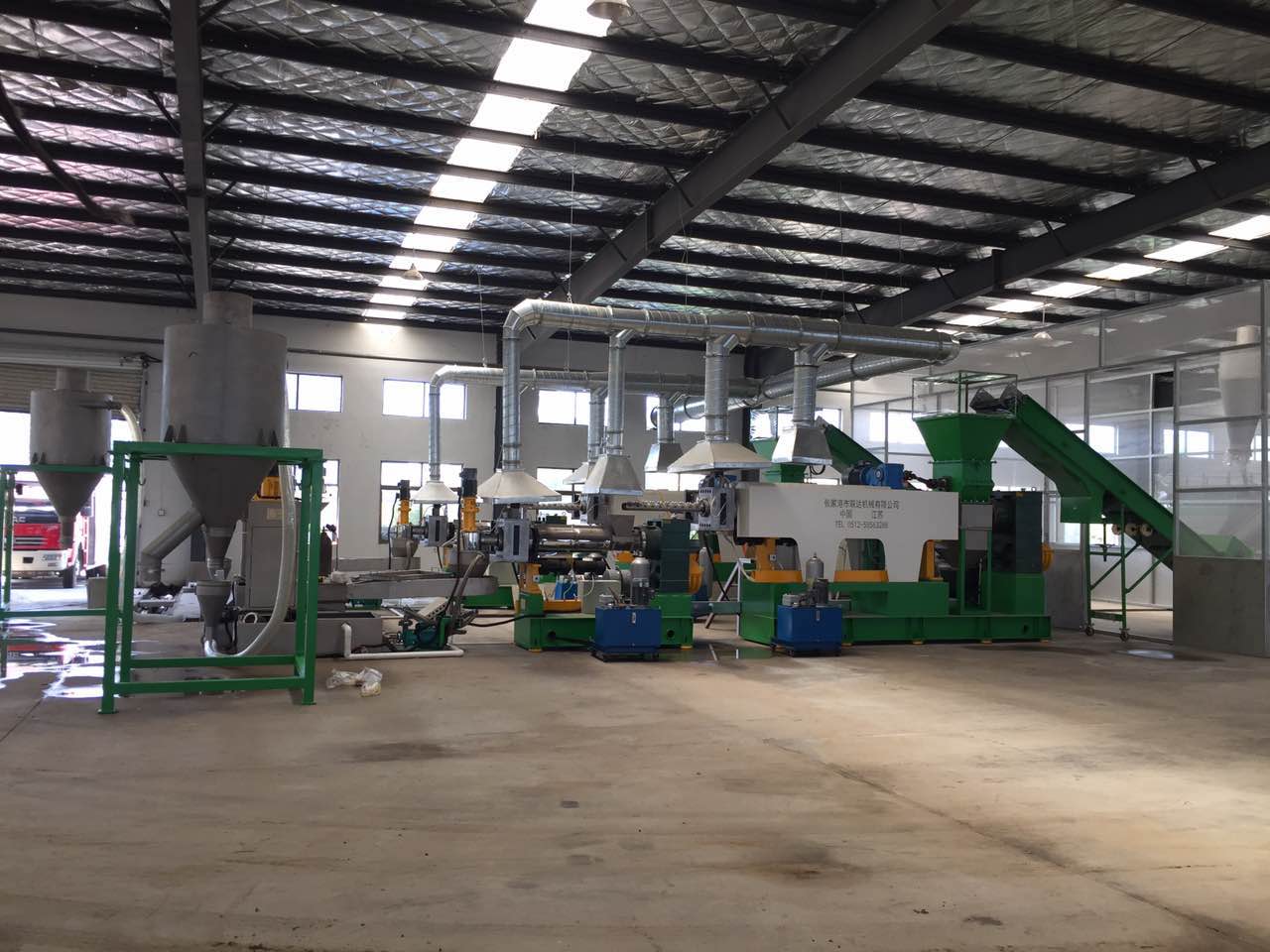

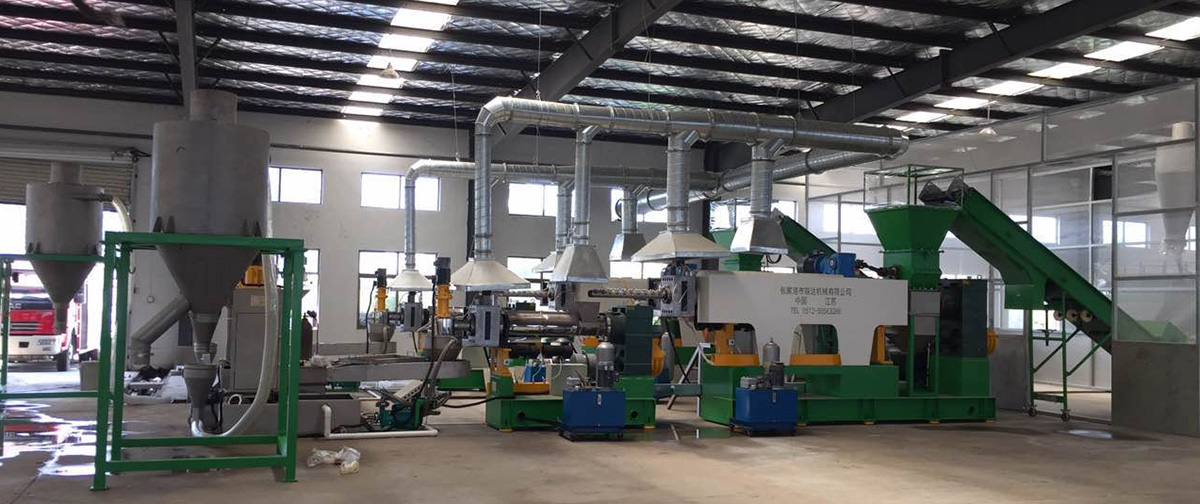

Production line Components	Hopper feeder, Extruder, Hydraulic screen changer, Pelletizing mold, Water-cooling unit, drying unit, silo tank
Application Material	HDPE, LDPE, LLDPE, PP, PA, PC, PS, ABS, BOPP
Screw diameter	65-180mm
Screw L/D	30/1; 32/1; 34/1; 36/1
Output range	100-1200kg/h
Screw material	38CrMoAlA
Cutting type	Water ring die face cutting or strand die
Screen changer	Double work position hydraulic screen changer non stop or customized
Cooling type	Water-cooled

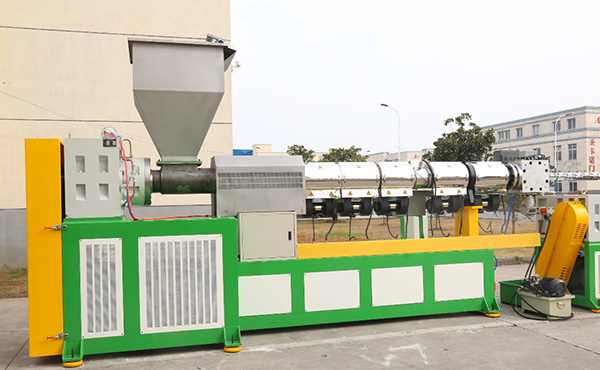

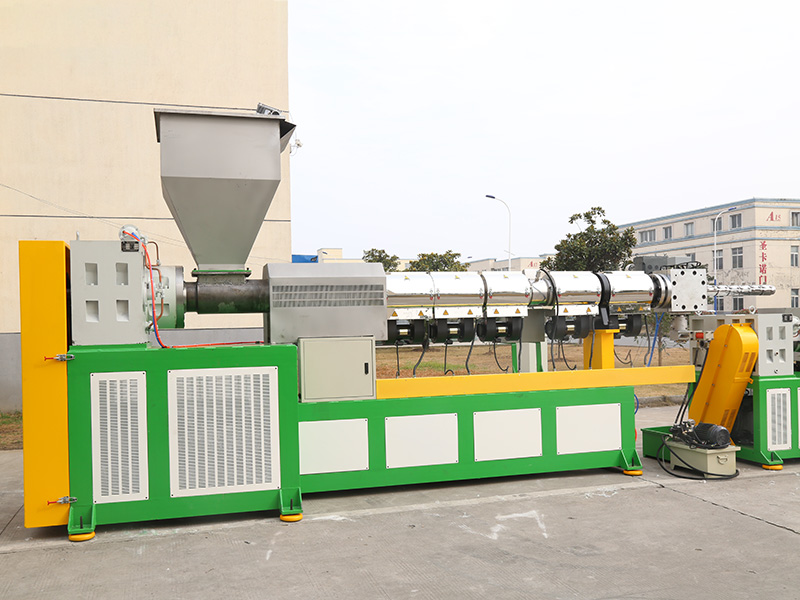

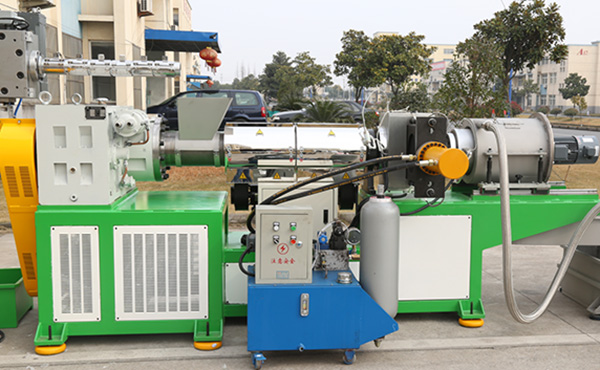

Extruder System

38CrMoA1 screw treated by nitriding, barrel fan cooling, controlled by temperature control table.
Equipped with a drain port and vacuum pump to ensure particle quality.
Single or double degassing can be customized based on material conditions.
High-torque, low-noise hard face gear box with external cooling circulation for longevity.

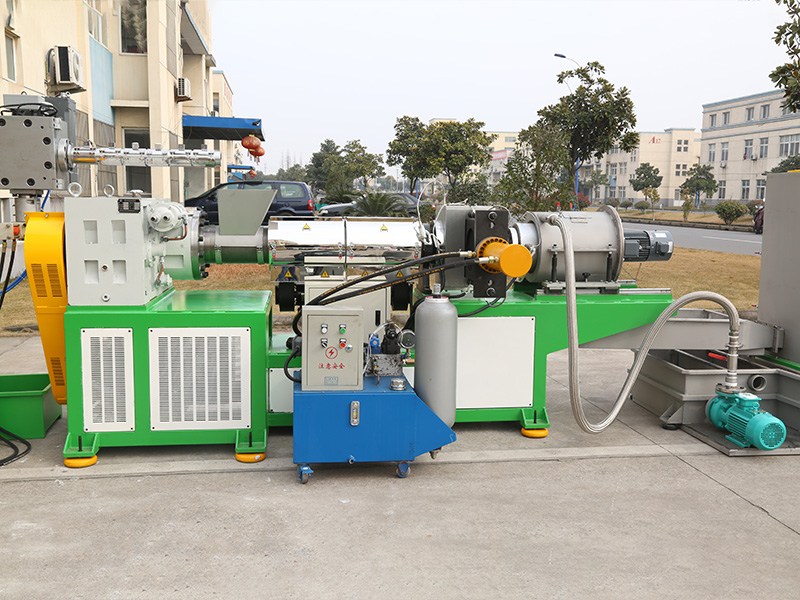

Second Step Extruder & Dewatering

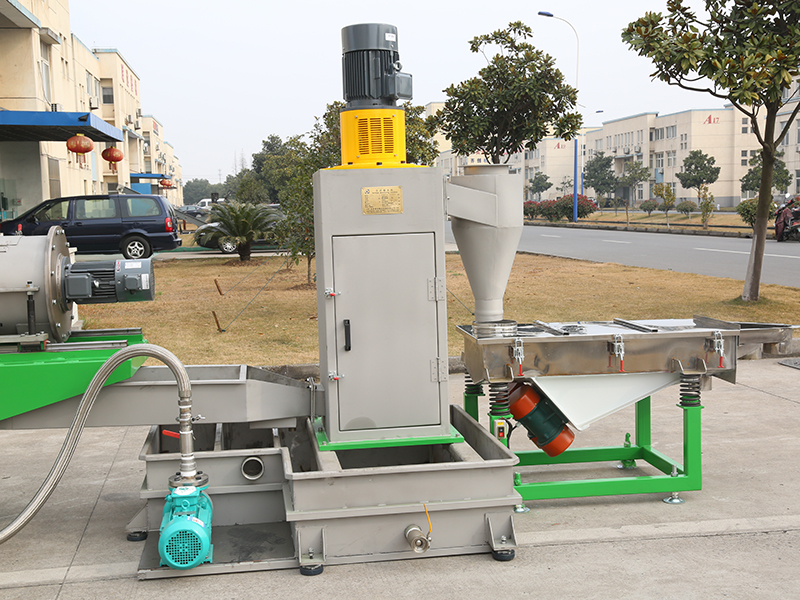

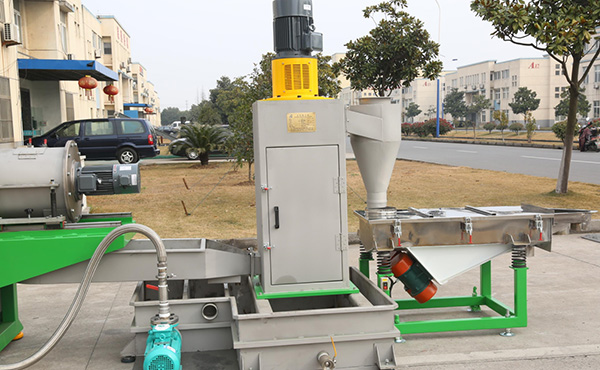

Single step or double step configurations available. Features water-ring pelletizing with inverter-controlled speed. Includes non-stop hydraulic screen changer with pressure sensors for continuous operation. The vertical dewatering machine ensures efficient drying after water cooling.

System Highlights

Ability: High productivity for diverse plastic types including PP, PE, PS, ABS, and BOPP.
Stability: Engineered for 24-hour non-stop industrial operation.
Efficiency: Optimized for low electricity, water, and labor consumption.
Control: Intelligent PLC automation for simplified operation and high reliability.
