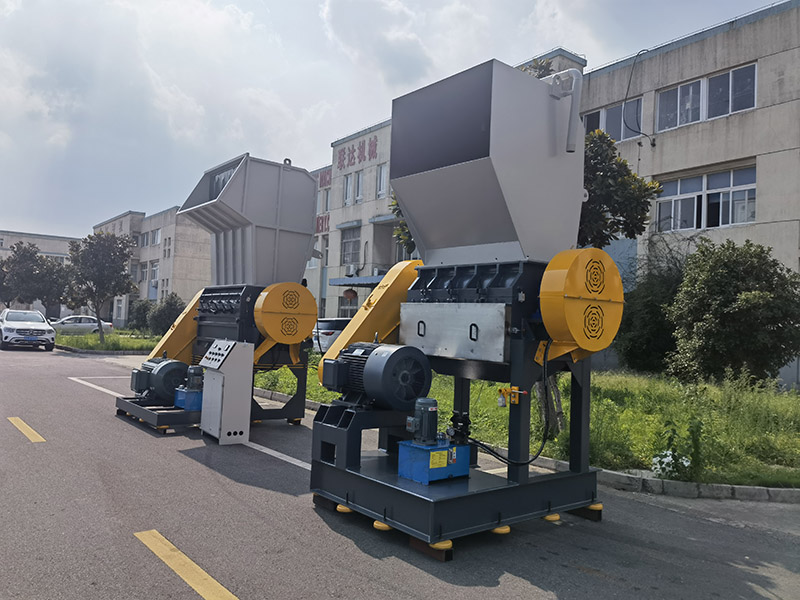

OEM/ODM Plastic Bottle Crusher Factory, Supplier

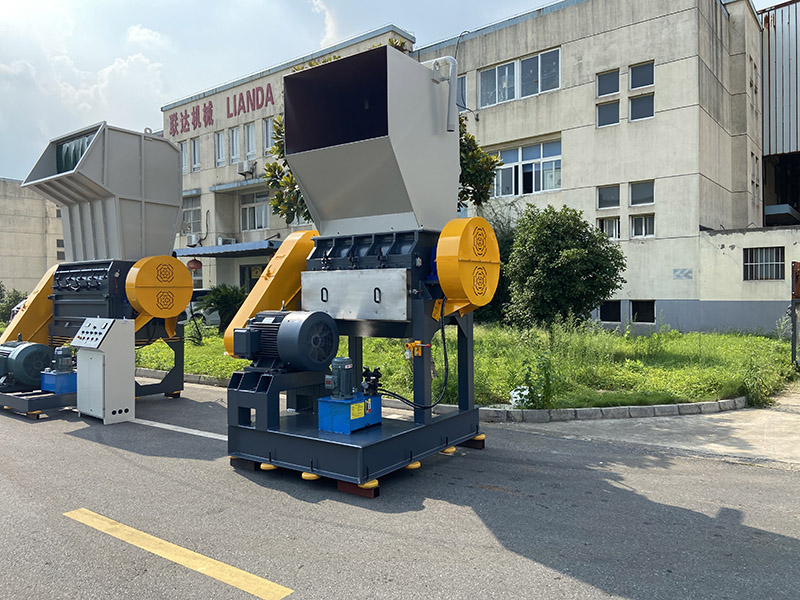

Plastic Bottle Crusher/ Granulator is designed and manufactured for processing hollow plastics, such as HDPE milk bottles, PET beverage bottles, Coke bottles, etc.It is also ideal machine for the secondary cutting when positioned behind pre-shredders of recycling systems.
Plastic Bottle Crusher/ Granulator is designed and manufactured for processing hollow plastics, such as HDPE milk bottles, PET beverage bottles, Coke bottles, etc. The knife holder structure adopts a hollow knife structure design, which can better cut hollow plastics during crushing. The output is 2 times higher than the ordinary crusher of the same model, and it is suitable for wet and dry crushing. It is an indispensable special equipment in the plastic bottle recycling and processing industry. It is also ideal machine for the secondary cutting when positioned behind pre-shredders of recycling systems.
ITEM
UNIT
600
900
1200
1600
Rotor Diameter
mm
φ450
φ550
φ550
Φ650
Rotary blades
pcs
6
9
12
16
Stable blades
pcs
2
4
4
8
Motor Power
kw
22
45
90
110
Capacity
kg/h
300
500
1000
2000kg/h
MACHINE FEATURES
Anti-wear machine housing
Claw type rotor configuration for films
Suitable for wet and dry granulation
20-40% additional throughput
Heavy duty bearings
Oversized external bearing housings
Knives are externally adjustable
Robust welded steel construction
Wide choice of rotor variations
Electrical hydraulic control to open housing
Electrical hydraulic control to open screen cradle
Replaceable wear plates
Amp meter control

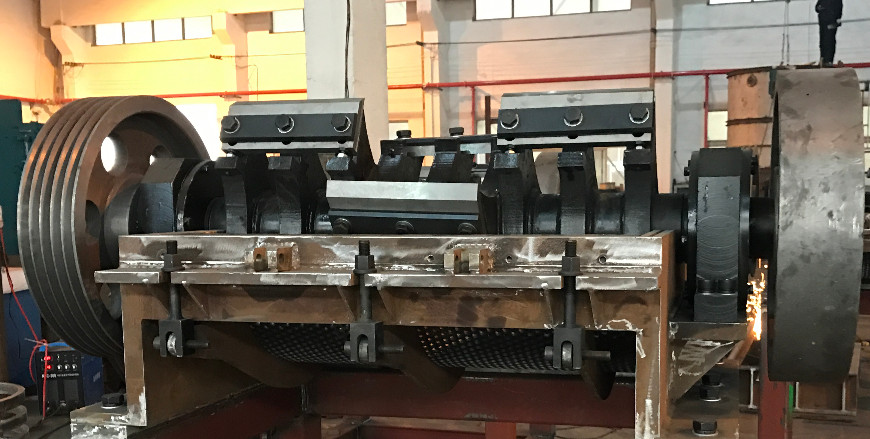

Blade Frame Design
Special designed blade frame which can better cut hollow plastics during crushing.
The output is 2 times higher than the ordinary crusher of the same model, and it is suitable for wet and dry crushing.
All spindles have passed strict dynamic and static balance tests to ensure the reliability of machine operation.
The spindle design can be customized according to different material requirements.

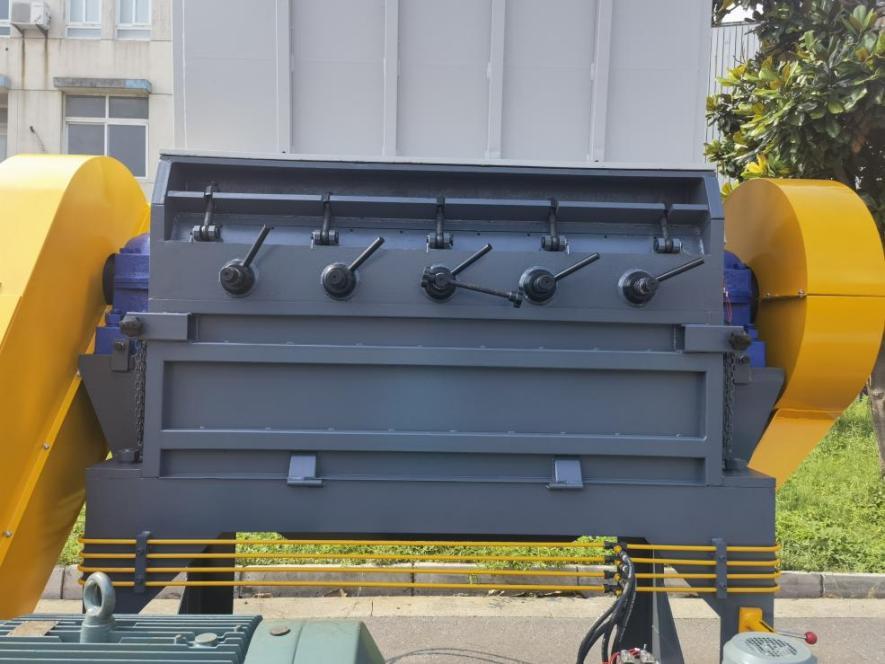

Chamber Room
The design of the plastic bottle crusher is reasonable, and the body is welded with high-performance steel.
Adopt high-strength screws to fasten, solid structure and durable.

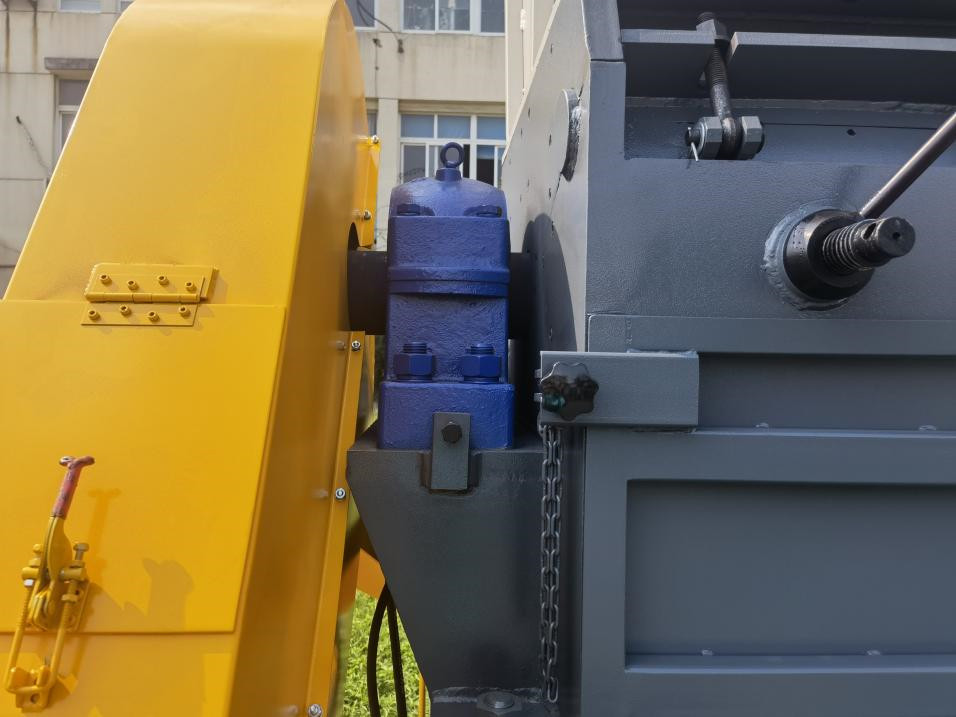

External Bearing Seat
The main shaft and the machine body are sealed by sealing ring, effectively avoid the casing of the crushing of material into the bearing, improve the bearing life.
Suitable for wet and dry crushing.

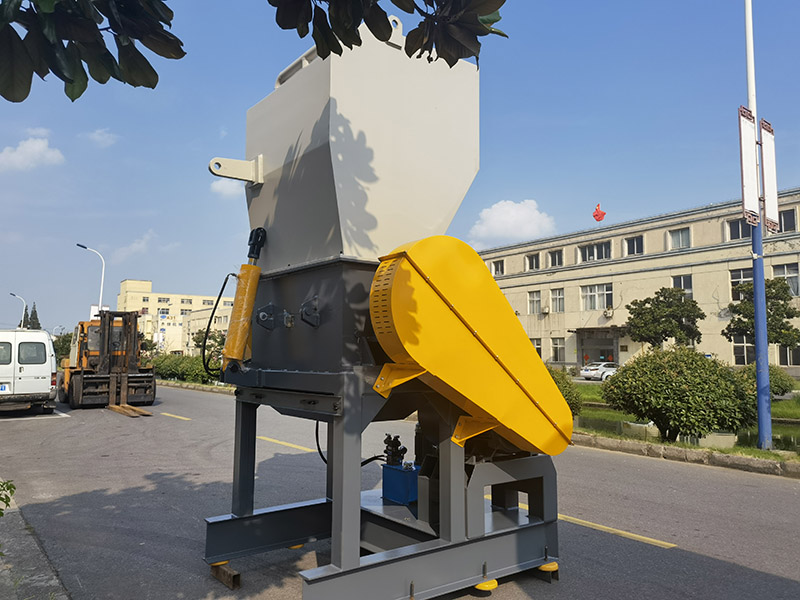

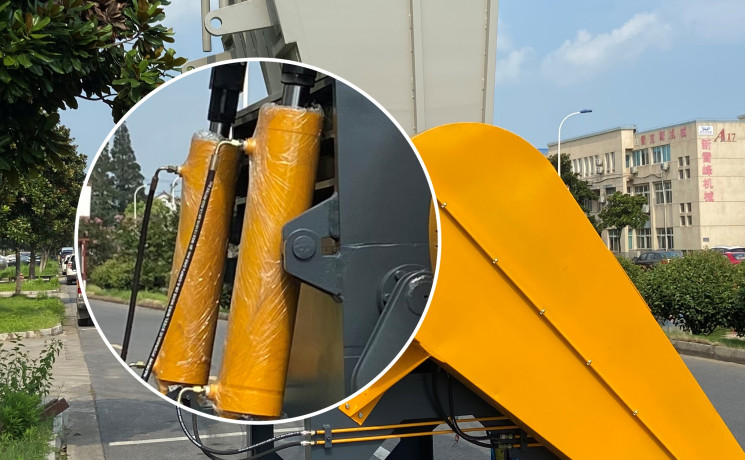

Crusher Open
Adopt Hydraulic open. Hydraulic tipping device can efficiently, safely and quickly improve the blade sharpening work.
Convenient for machine maintenance and the replacement of blades.
Optional: the screen bracket are hydraulically controlled.

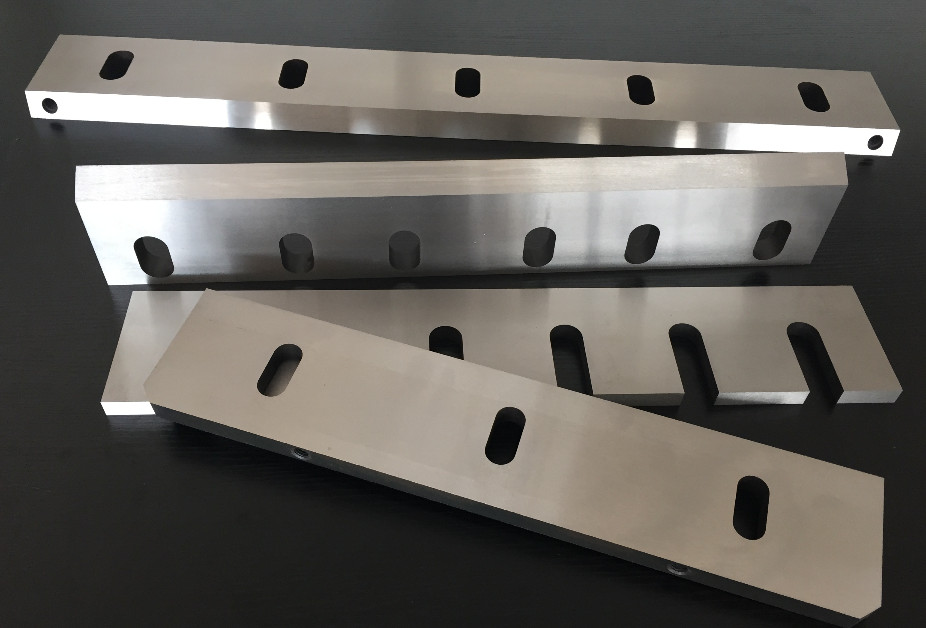

Crusher Blades
Blades material can be 9CrSi, SKD-11, D2 or customized.
Special blade making processing to improve the blades working time.

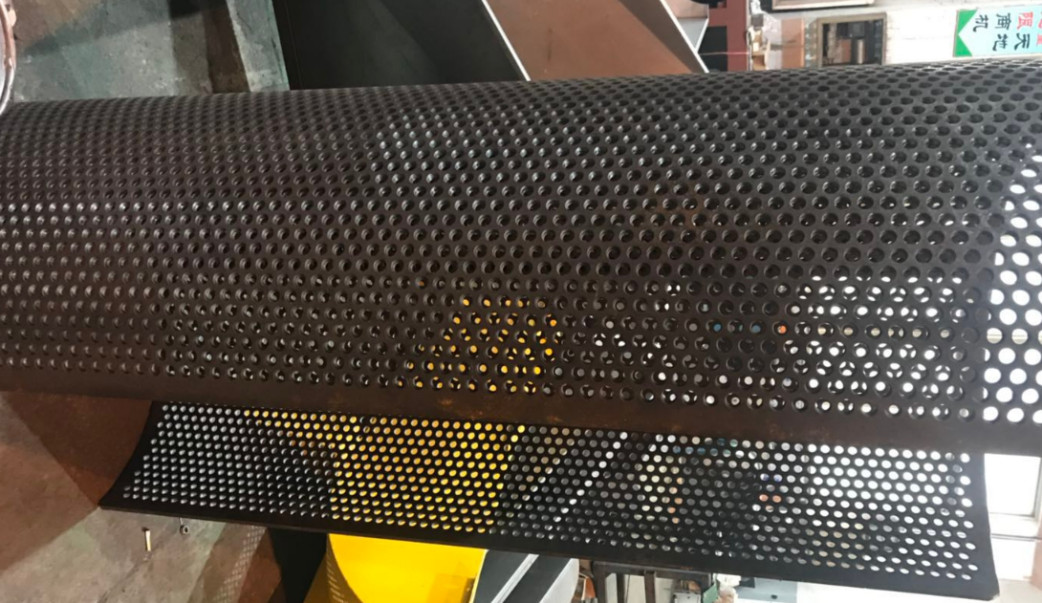

Sieve Screen
The crushed flake/scrap size are uniform and the loss is small. Multiple screens can be replaced at the same time to meet different needs.

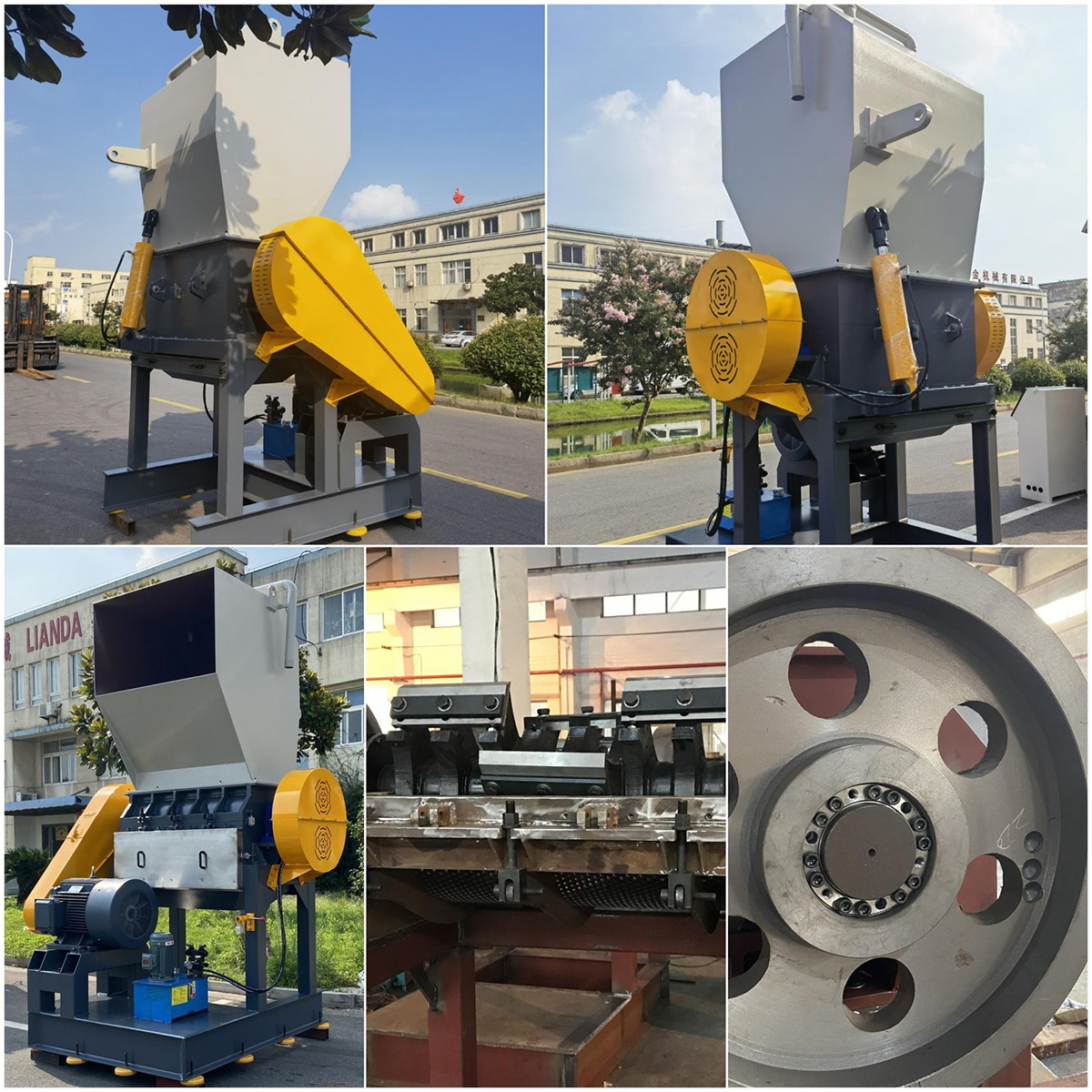

OPTIONS
Extra flywheel
Double infeed hopper roller feeder
Blade material 9CrSi, SKD-11, D2 or customized
Mounted screw feeder in hopper
Metal detector
Increased motor driven
Hydraulic controlled sieve screen
Frequently Asked Questions (FAQ)
Q1: What materials can this plastic bottle crusher process?
This plastic bottle granulator is specifically designed for processing hollow plastics, including HDPE milk bottles, PET beverage bottles, Coke bottles, and plastic containers.
Q2: Can the plastic bottle crusher be used for both wet and dry crushing?
Yes, the machine is suitable for both wet and dry granulating processes, allowing flexibility according to your recycling line requirements.
Q3: How does the hollow knife holder structure improve efficiency?
The hollow blade frame design optimizes cutting angles for hollow plastics, resulting in up to 2 times higher throughput compared to ordinary crushers of the same model.
Q4: What blade materials are available for selection?
Blade materials can be customized based on your material crushing requirements, including high-durability options such as 9CrSi, SKD-11, and D2 steel.
Q5: How does the hydraulic opening system facilitate maintenance?
The hydraulic tipping device enables safe, fast, and effortless opening of the machine housing and screen cradle, making blade replacement and routine maintenance convenient.
