Granulators are highly efficient for transforming a wide variety of plastics into valuable granules. This machine is ideal for processing blow-molded materials such as PET bottles, PE/PP bottles, containers, or buckets, and is capable of shredding even the toughest materials.
| Model | Unit | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|
| Rotary blades | pcs | 9 | 12 | 15 | 18 |
| Stable blades | pcs | 2 | 2 | 2 | 4 |
| Motor Power | kw | 5.5 | 7.5 | 11 | 15 |
| Grinding Chamber | mm | 310*200 | 410*240 | 510*300 | 610*330 |
| Capacity | Kg/h | 200 | 250-300 | 350-400 | 450-500 |

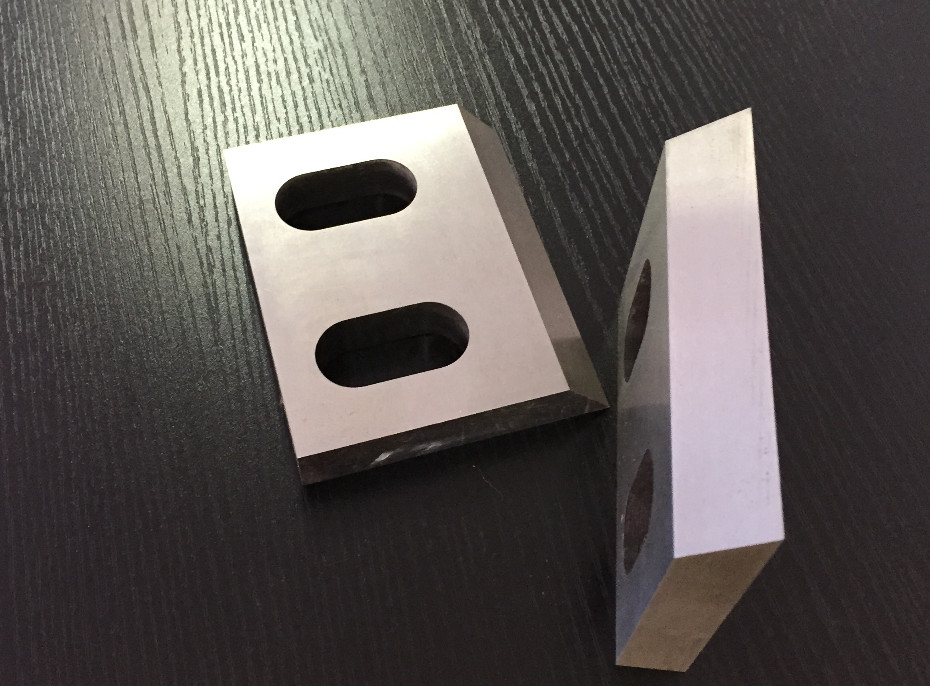

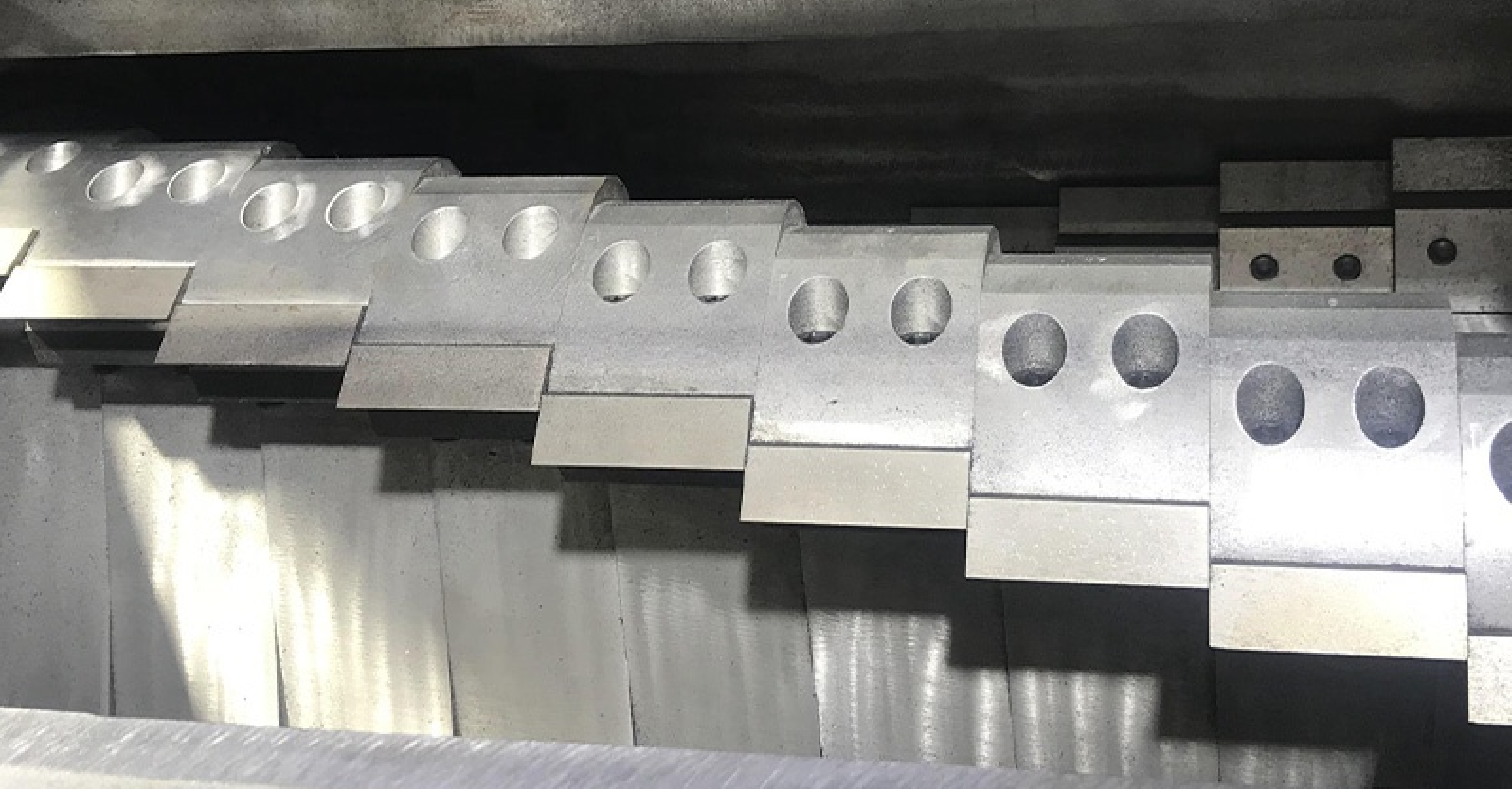

Blade Frame Design: Made of high-strength alloy tool steel (CR12MOV) with high hardness (57-59°). All spindles pass strict dynamic and static balance tests.

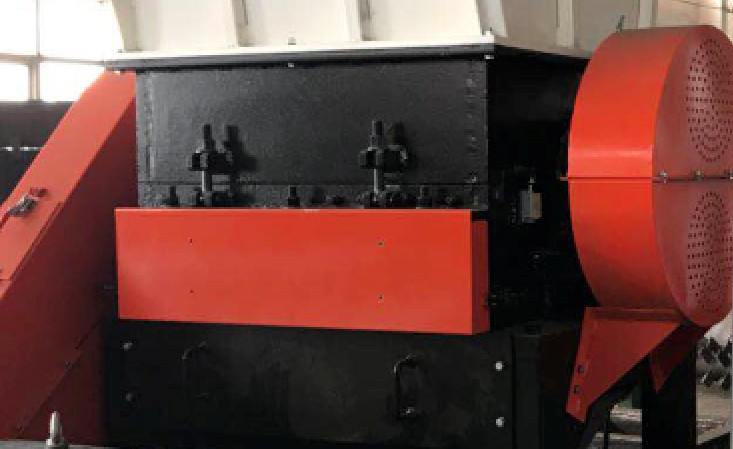

Crushing Chamber: High-performance welded steel with 50mm wall thickness for maximum stability and durability.
It handles soft and hard plastics, including PVC pipe, rubbers, preforms, acrylic, and cable sheaths.
Yes, the design is suitable for both wet and dry granulation processes.
The machine features a hydraulic tipping device for quick and safe access to the cutting chamber for blade maintenance.
Yes, multiple screens can be replaced to achieve specific flake or scrap sizes as needed.

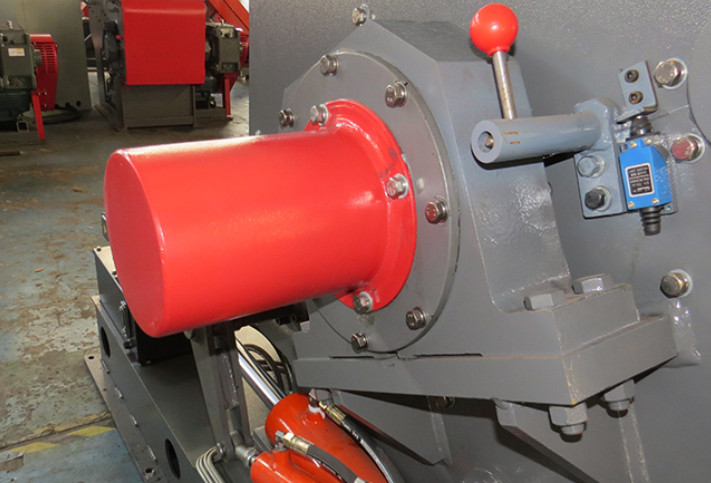

It uses a sealing ring to prevent crushed material from entering the bearing, significantly extending its service life.
