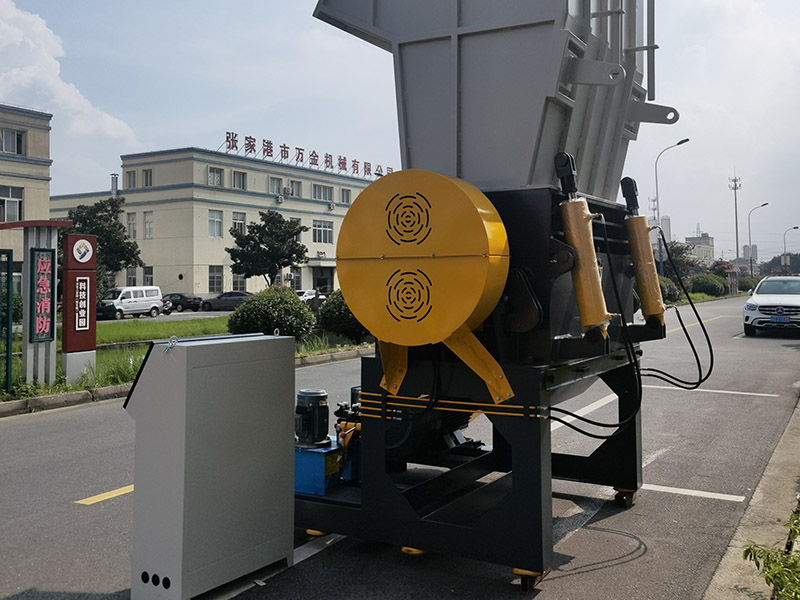

Top 10 PP Jumbo bag Crusher Manufacturer, Supplier
In the field of soft plastic crushing, to the toughness and high winding characteristics of LDPE film, Agricultural/Greenhouse film and PP woven/ Jumbo/Raffia bag materials, LIANDA has designed a special "V"-shaped crushing blade frame and a back knife type knife loading structure. On the basis of the original old equipment, the production capacity is increased by 2 times.

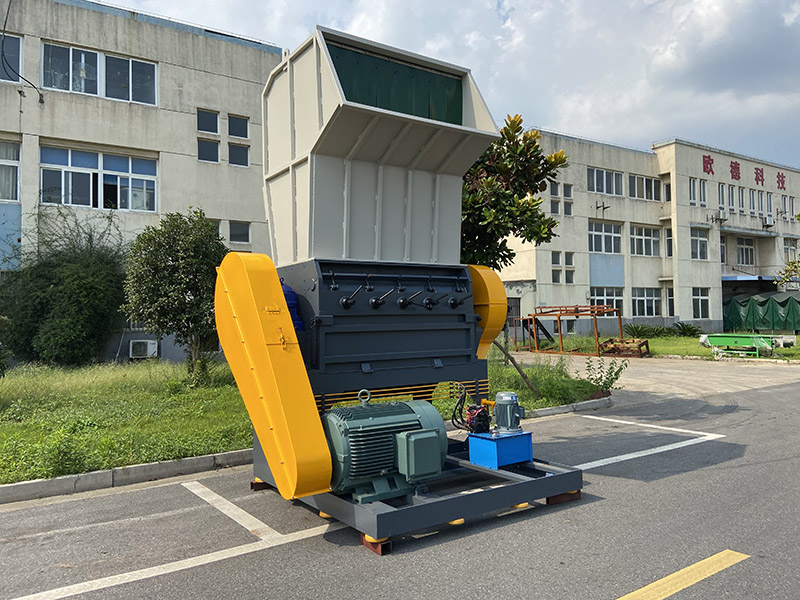

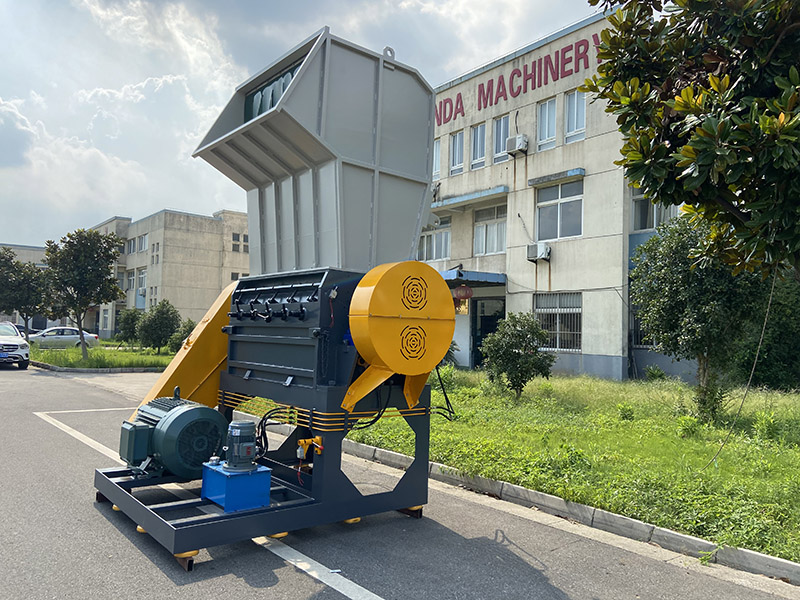

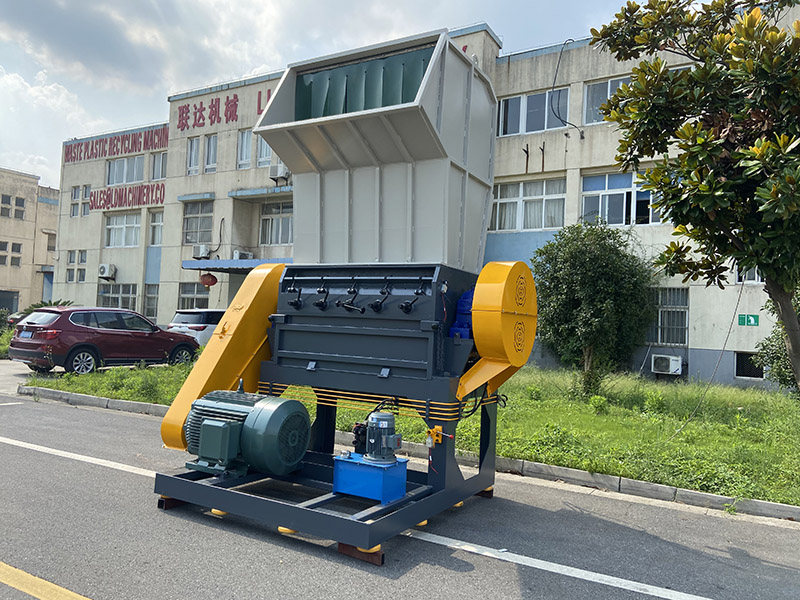

The Film Granulator has been specially designed for the processing of films, plastic bags, PP raffia bags, Jumbo bags, Cement bags, etc., soft plastic. It has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stable knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
Technical Specifications
ITEM
UNIT
600
900
1200
Rotor Diameter
mm
φ450
φ550
φ550
Rotor Knives
pcs
8
9
8
Stator Knives
row
2
4
4
Motor Power
kw
30
45
90
Capacity
kg/h
300
500
1000
Machine Features
Anti-wear machine housing
”V” type rotor configuration for films
Suitable for wet and dry granulation
Heavy duty bearings
Oversized external bearing housings
Knives are externally adjustable
Robust welded steel construction
Wide choice of rotor variations
Electrical hydraulic control to open housing
Electrical hydraulic control to open screen cradle
Replaceable wear plates
Amp meter control
Detailed Features & Components

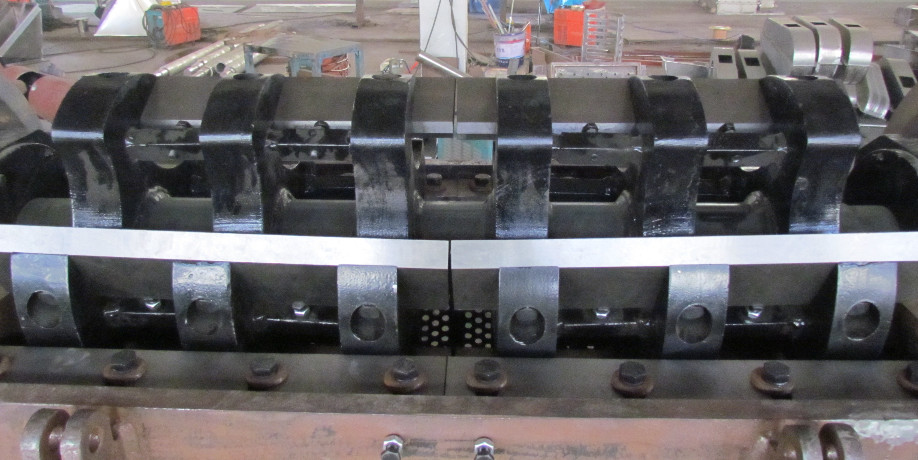

Blade Frame Design
The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels.
The rotor configuration provides between 20-40% additional throughput in comparison to standard rotor configurations.
The 1-2mm distance between the screen and the blade is the guarantee for doubling the output, and the requirements for equipment processing and manufacturing are more difficult.
Charming Room
The design of the plastic bottle crusher is reasonable, and the body is welded with high-performance steel.
Adopt high-strength screws to fasten, solid structure and durable.
External Bearing Seat
Effectively avoid the casing of the crushing of material into the bearing, improve the bearing life.
Suitable for wet and dry crushing.
Crusher Open

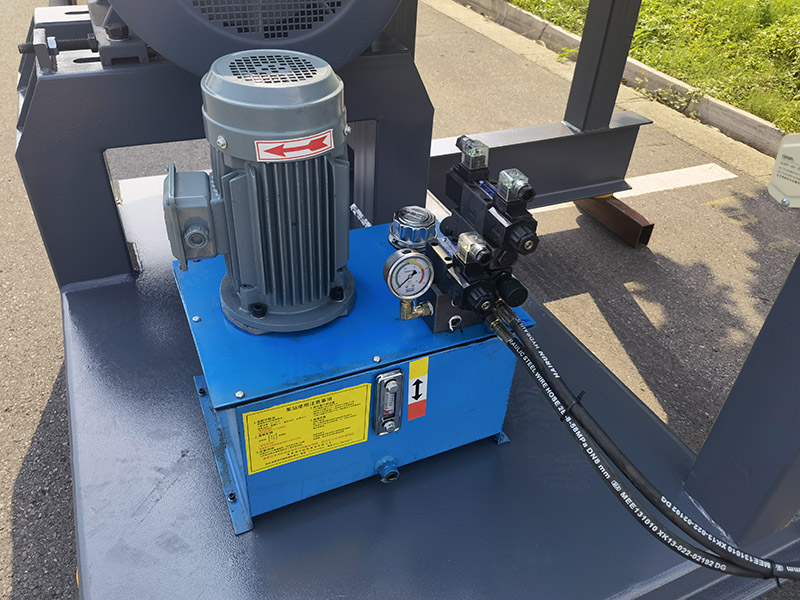

Adopt Hydraulic open. Hydraulic tipping device can efficiently, safely and quickly improve the blade sharpening work.
Crusher Blades
Blades material can be 9CrSi, SKD-11, D2 or customized.
Special blade making processing to improve the blades working time.

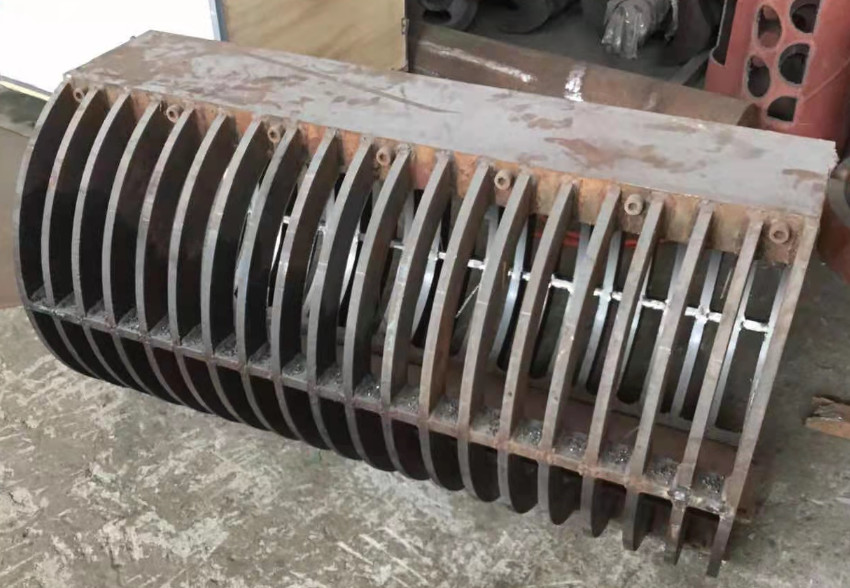

Sieve Screen
Welded strip screen makes the materials with high sediment content such as broken mulch film and agricultural film more wear-resistant.
Optional Upgrades
Extra flywheel
Double infeed hopper roller feeder
Blade material 9CrSi, SKD-11, D2 or customized
Mounted screw feeder in hopper
Metal detector
Increased motor driven
Frequently Asked Questions (FAQ)
Q1: What types of plastic materials can this granulator process?
A: It is specially designed for processing soft plastics including films, plastic bags, PP raffia bags, Jumbo bags, and Cement bags.
Q2: What advantages does the "V" type rotor design offer?
A: The "V" cut cutting geometry provides higher throughput with reduced power consumption, better quality cuts, lower noise levels, and 20-40% additional output compared to standard rotor configurations.
Q3: Can this equipment be used for both wet and dry processing?
A: Yes, the granulator is suitable for both wet and dry granulation and crushing operations.
Q4: How does the external bearing seat benefit the machine's operation?
A: The external bearing seat design effectively prevents crushed material from entering the bearing casing, thereby extending the overall lifespan of the bearings.
Q5: What materials are available for the crusher blades?
A: Blade materials can be chosen from 9CrSi, SKD-11, D2, or customized according to specific processing needs.
Q6: What optional features can be added to the granulator?
A: Options include an extra flywheel, double infeed hopper roller feeder, mounted screw feeder in hopper, metal detector, increased motor drive, and customized blade materials.
