CE Certified Plastic PET Strap Production Line Factory, Supplier

Drying&Crystallization in one step by 20mins Final moisture can be ≤50ppm--Strong adhesion,large tensile force,corrosion resistance  Save 60% energy cost compared with Conventional dehumidifier

Product Description

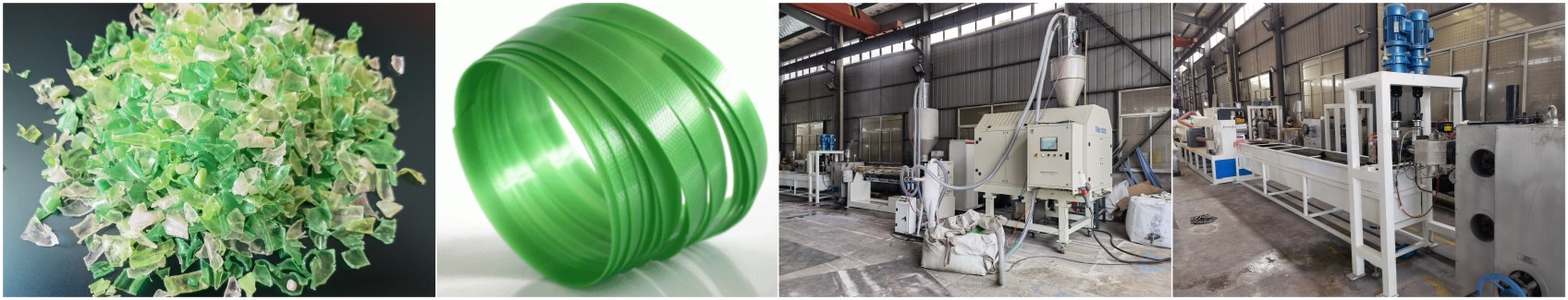

Plastic PET Strap Production Line

Technical Specifications

Machine NamePET strap making machine
Place of OriginZHANGJIAGANG, China
CertificationISO9001-2000; CE
Raw MaterialPET Bottle Flakes
Output80-500kg/h
Product Width9-32mm
Product LengthAccording to customer's requirement
Machine SizeLength (30-50m) * Width (5m) * Height (5m)
ContactorSiemens
InverterABB
Temperature ControllerOmron

System Features

  • Uses 100% recycled bottle flakes to produce high-quality PET straps.
  • Unique drying system ensures material viscosity and optimal strap quality.
  • Infrared crystal dryer: Dry & Crystallize in 20 mins, saving 45-50% energy.
  • High efficiency: No pre-heating required with instant start-up.
  • Improved tensile strength through advanced drying and crystallization.
  • Equipped with Siemens PLC system with one-key memory function.
  • Compact structure, easy to operate and maintain.
  • Independent temperature and drying time settings.

Extruder Capacities

No.Main ExtruderCapacity
1SJ75/30 Single screw extruder100kg/h
2SJ90/30 Single screw extruder200kg/h
3SJ110/30 Single screw extruder300kg/h
4SJ120/30 Single screw extruder400kg/h
5SJ135/30 Single screw extruder500kg/h

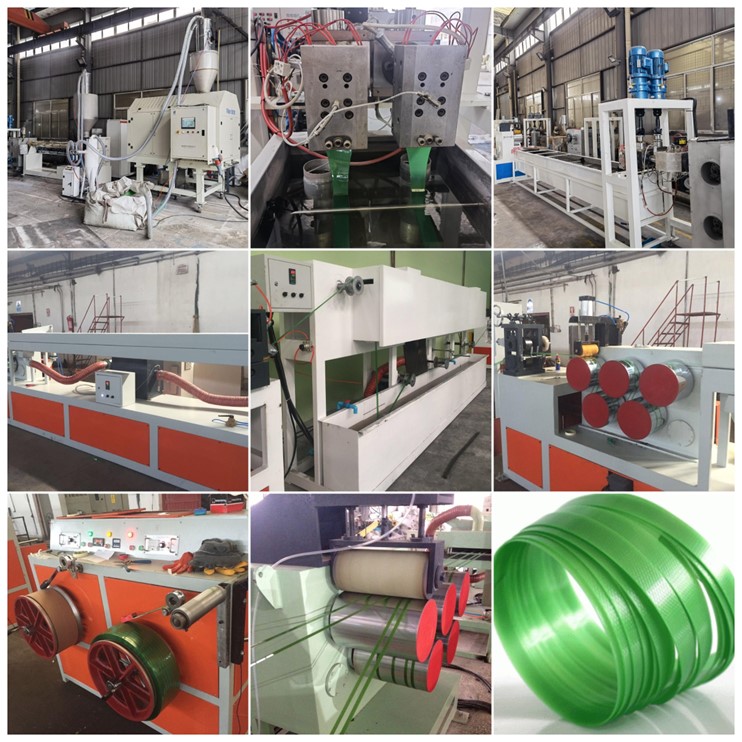

Equipment Components

Frequently Asked Questions

What materials can this machine process?
It is designed specifically for PET bottle flakes.
Does the machine support recycled materials?
Yes, the machine is optimized to use 100% bottle flakes recycled material.
How much energy does the infrared dryer save?
It can save approximately 45-50% in energy costs compared to conventional drying systems.
What is the control system brand?
The line uses Siemens PLC control systems.
Is the operation difficult?
The machine features a simple structure, easy operation, and a one-key memory function.
Can the strap width be adjusted?
Yes, the machine produces straps with a width range of 9-32mm.
