1 / 3

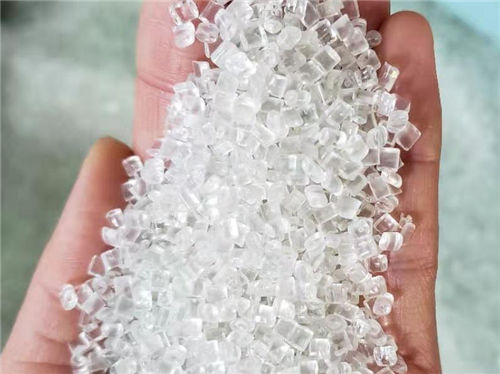

| Raw Material | PET Pellets (Made by Recycled flake) |  |

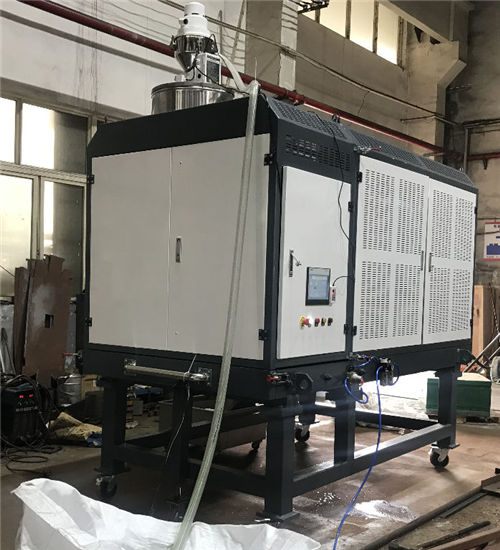

| Using Machine | LDHW-600*1000 |  |
| Crystallized Temperature | 200℃ | |
| Crystallized Time | 20mins | |

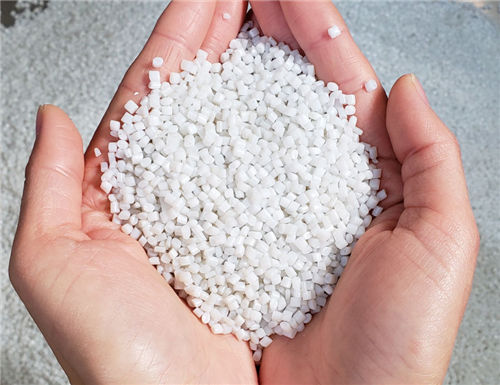

| Final material | Crystallized PET Pellets |  |

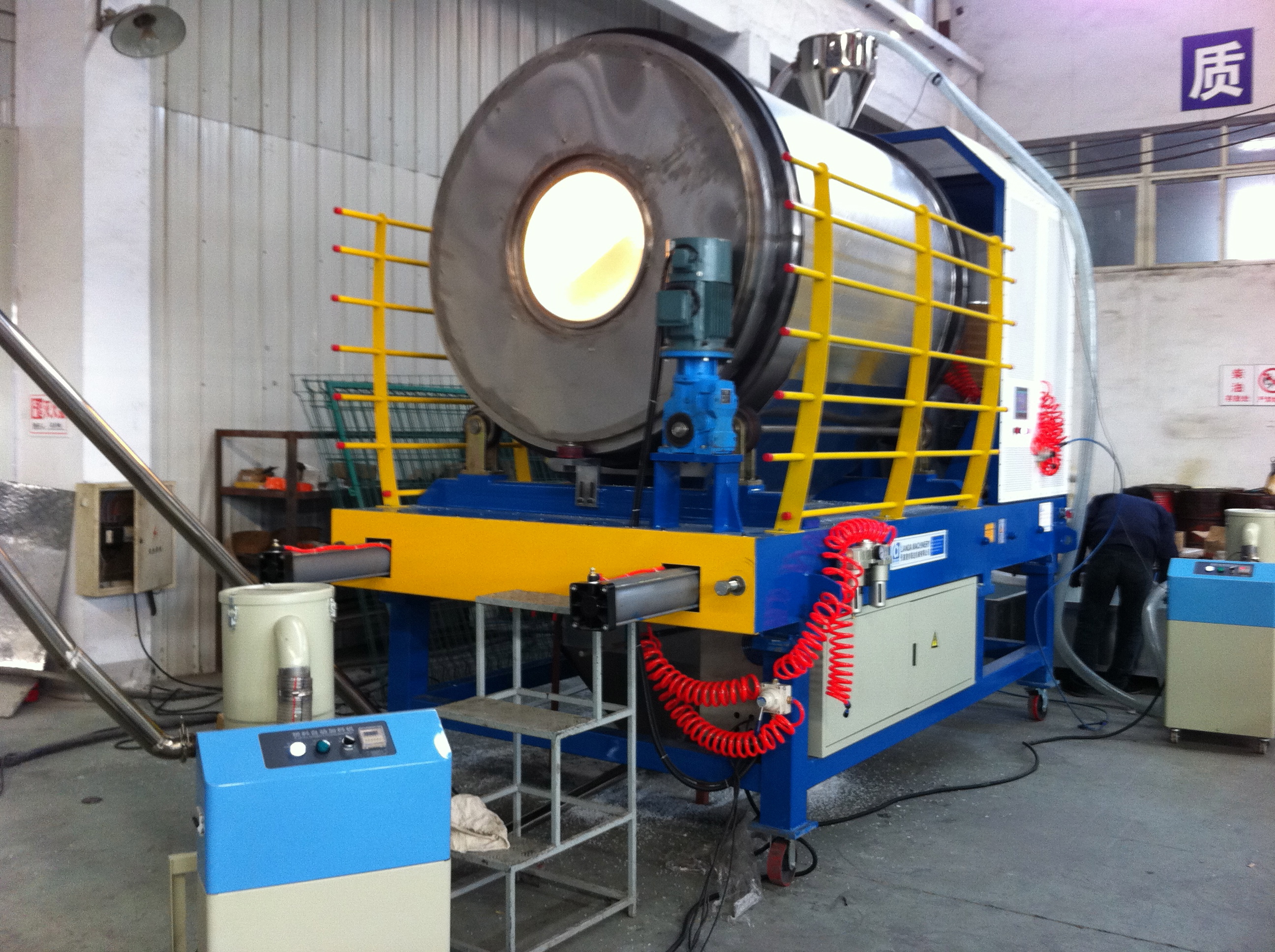

The system utilizes infrared lamps to elevate PET pellet temperatures to the target setting efficiently by maintaining a controlled, slower drum rotation speed.
>> Phase 2: Drying & CrystallizationOnce the target temperature is reached, drum speed increases to prevent material clumping while infrared power is optimized to complete the drying cycle within 15-20 minutes.
>> Phase 3: Automated DischargeThe IR drum automatically discharges material and refills for the next cycle. Parameters and temperature profiles are fully managed via the touch screen control, allowing for the storage of material-specific recipes.
| Heating | Pre-processing granules (PVC, PE, PP) to boost extrusion throughput. |
| Crystallization | Treatment of PET flakes, masterbatch, PBT, PEEK, PLA, etc. |
| Drying | Processing of free-flowing bulk materials like ABS/PC, LCP, TPE, and TPU. |
| High-moisture | Handles processes with moisture levels >1%. |
| Diverse | Removal of volatile components and residual oligomers. |
