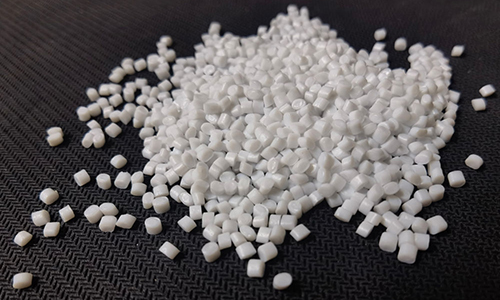

| Raw Material | PET Resin CR-Bright (For food package) |

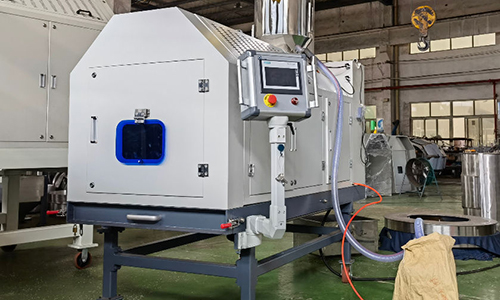

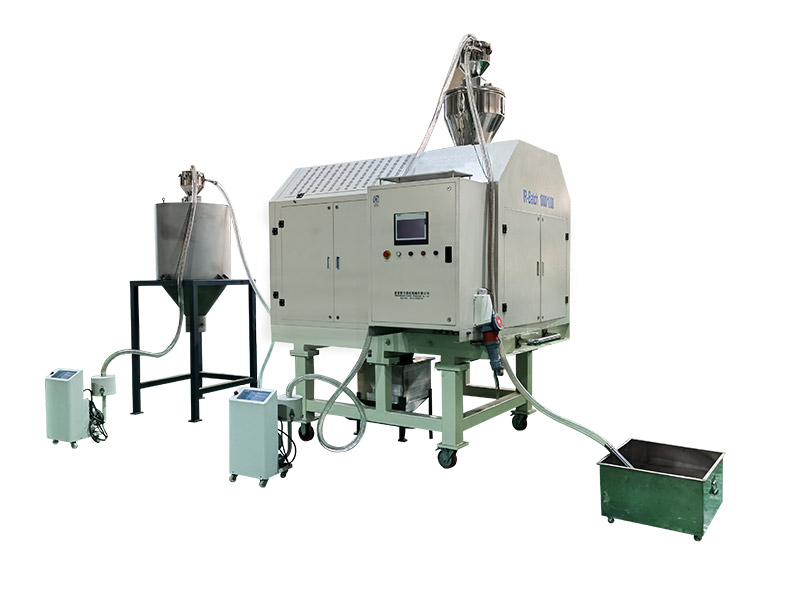

| Equipment Model | LDHW-600*1000 |

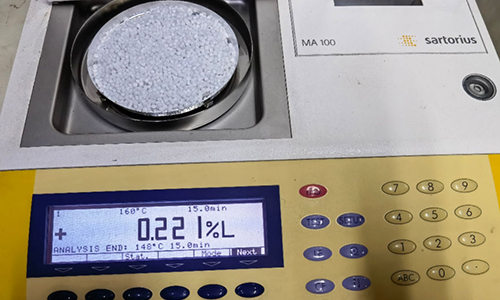

| Initial Moisture | 2210ppm (Tested by German Sartorius Instrument) |
| Drying Temperature | 200℃ |
| Drying Time | 20 minutes |

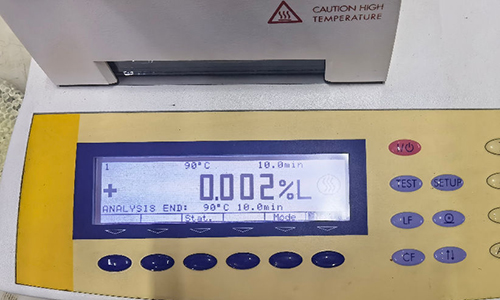

| Final Moisture | 20ppm (Tested by German Sartorius Instrument) |

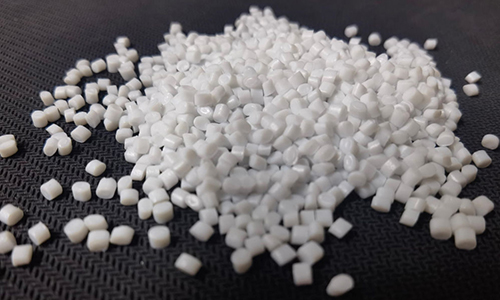

| Result | Dried PET Resin (No clumping, no sticking) |
Step 1: Rapid Pre-heating
The drum rotates at a slow speed while infrared lamps operate at high power to quickly raise PET pellets to the target temperature.
Step 2: Controlled Drying
Upon reaching the target temperature, drum speed increases to prevent clumping. Infrared power is optimized to complete the drying cycle, typically within 15-20 minutes depending on material properties.
Step 3: Automated Cycle

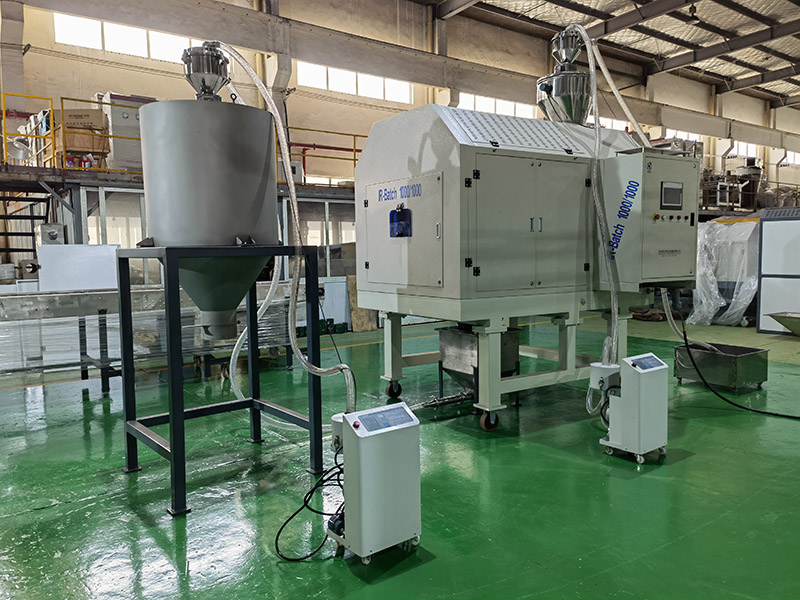

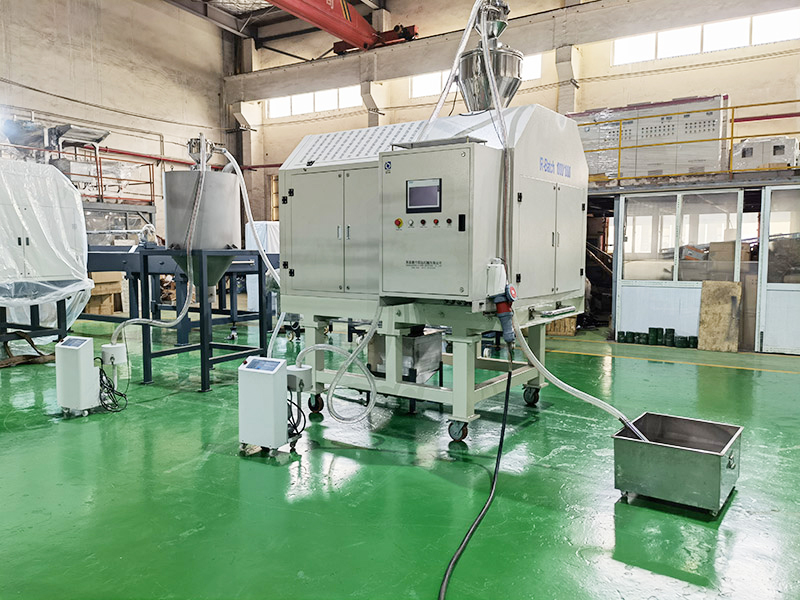

The system features automatic discharge and refilling. All temperature profiles and process parameters are managed via an integrated Touch Screen, allowing users to save custom material recipes.
A: The system is compatible with various granulates including PET, TPE, PETG, APET, RPET, PBT, ABS/PC, HDPE, PLA, and others.
A: No, the infrared heating technology allows the production to start immediately upon startup.

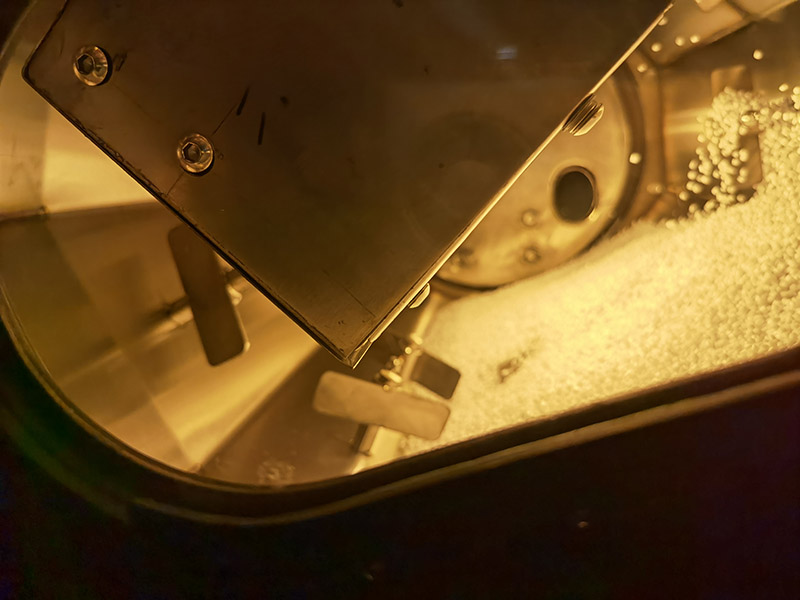

A: Constant drum rotation combined with specifically designed spiral coils and mixing elements ensures uniform heating and separation.
A: The standard drying process is completed in approximately 20 minutes, reaching moisture levels ≤ 30ppm.
A: Yes, it features a state-of-the-art Touch Screen interface where process parameters can be stored as recipes for reproducible results.
