Top 10 Infrared crystal dryer PET Granulation Factory, Supplier

Infrared Pre-Drying of PET Flakes: Increasing Output and Improving Quality on PET Extruders >>Improving the manufacturing and physical properties of recycled, food-grade PET through technology powered by infrared light has a crucial part to play in the intrinsic viscosity (IV) property

Send Inquiry

Product Description

Applicable Materials

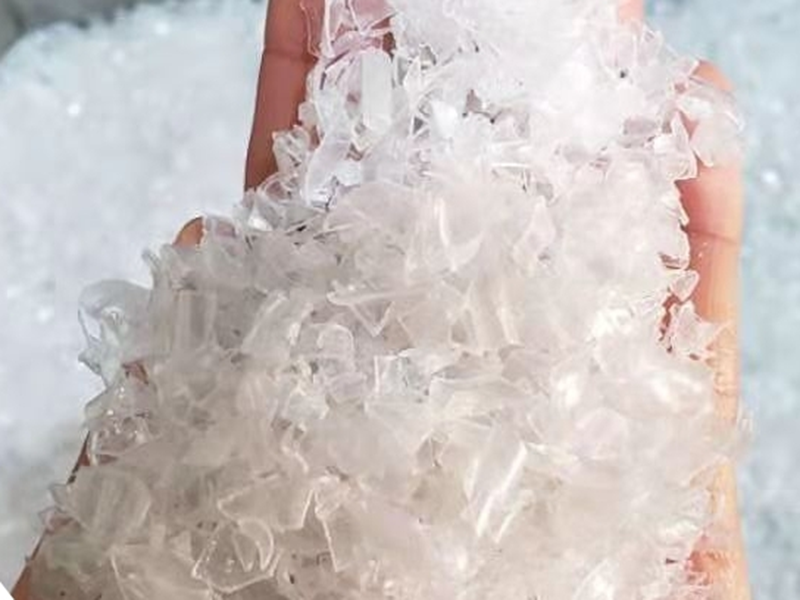

PET/BOPET bottle flakes, PET film, PET fiber, waste cloth, optical film
PA66 fishing net, carpet

Technical Specifications

Model	Screw Diameter (mm)	L/D	Motor Power (kw)	Capacity (kg/h)
GTE52B	52	32-60	55	50-150
GTE65B	65	32-60	90	150-350
GTE75B	75	32-60	132	400-500

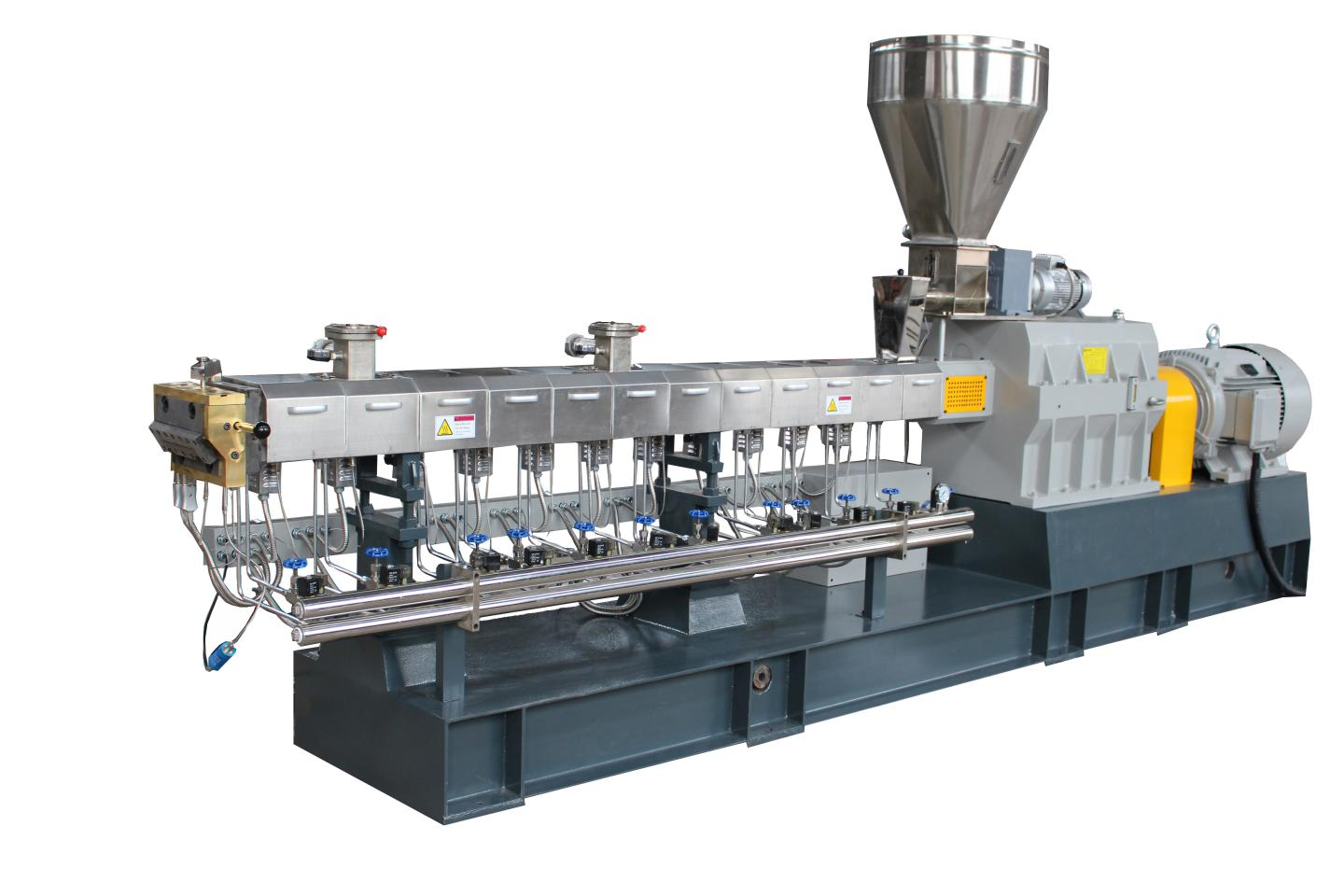

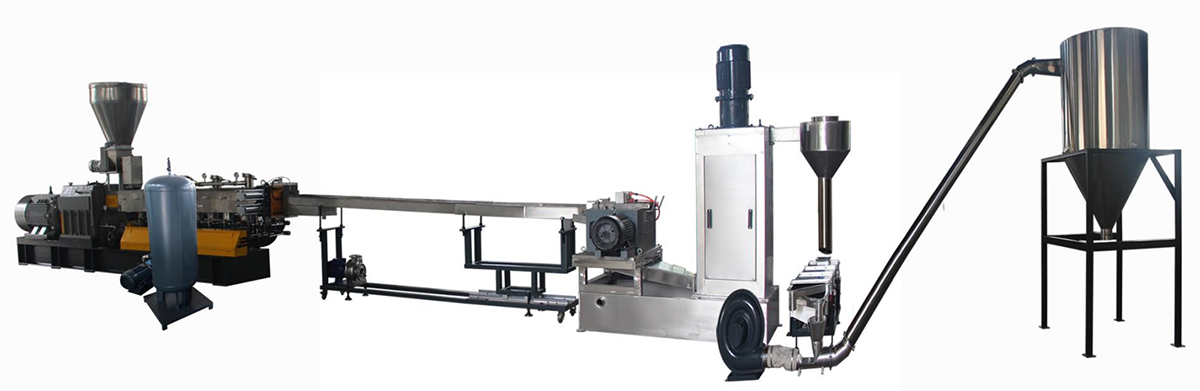

We can provide you with pelletizing machine as per your requirements.

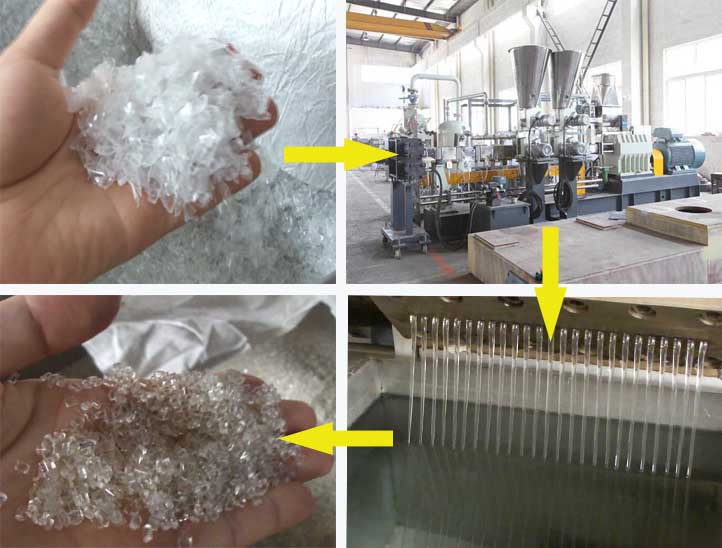

Machine Processing

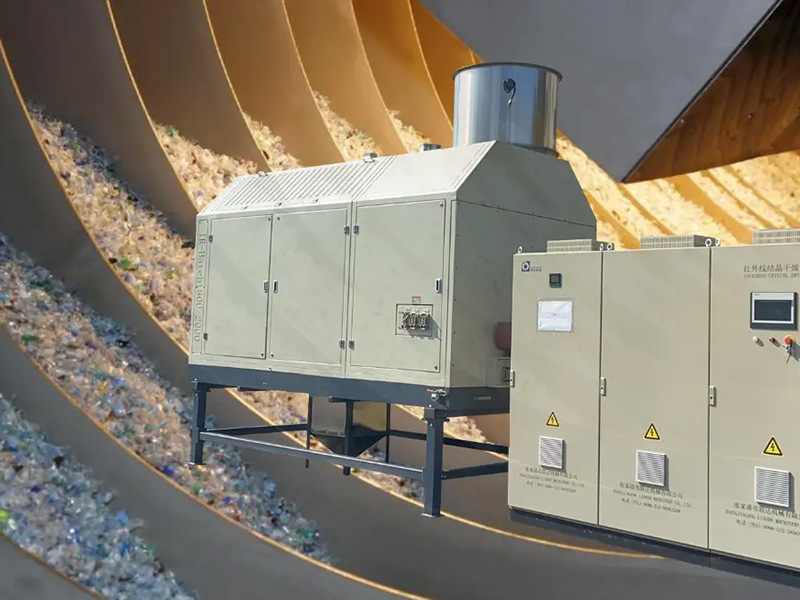

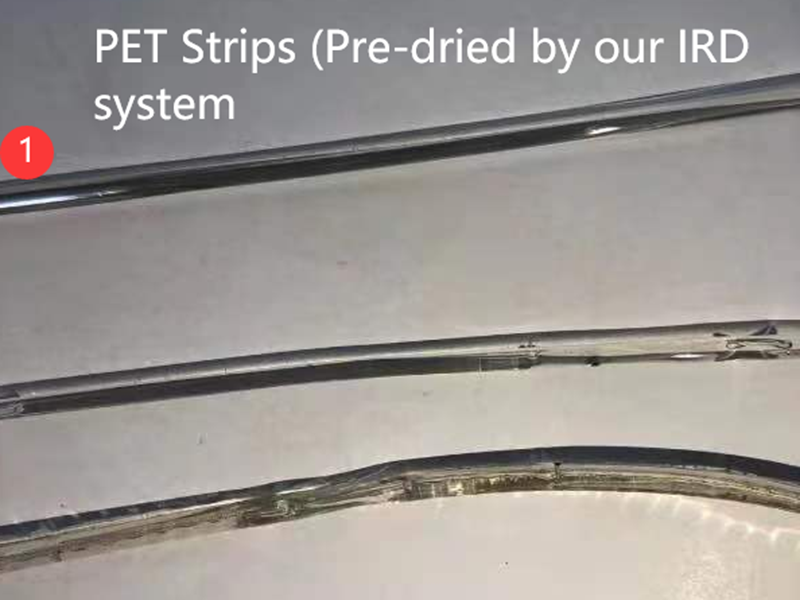

Pre-crystallization and drying of the flakes prior to extrusion helps minimize the loss of IV from PET, a critical factor for the reuse of the resin. Reprocessing the flakes in the extruder reduces IV due to hydrolysis in the presence of water; our IRD System limits this reduction by ensuring a homogeneous drying level.

Key Performance Data:
Drying time only needs 15-20 mins, final moisture can be ≤ 50ppm, and energy consumption is less than 80W/KG/H. Preheating the material ensures constant temperature entry, reducing shearing in the extruder.

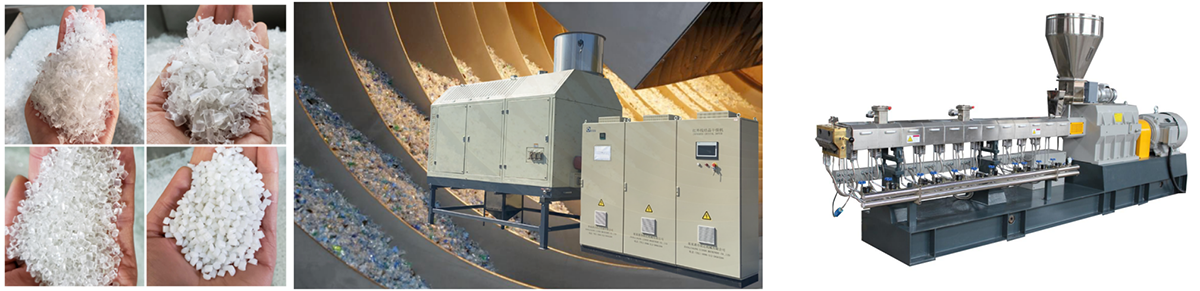

Infrared Pre-Drying Benefits

Improving the manufacturing and physical properties of recycled, food-grade PET through infrared technology plays a crucial role in maintaining intrinsic viscosity (IV).

Improving PET Extruder Output

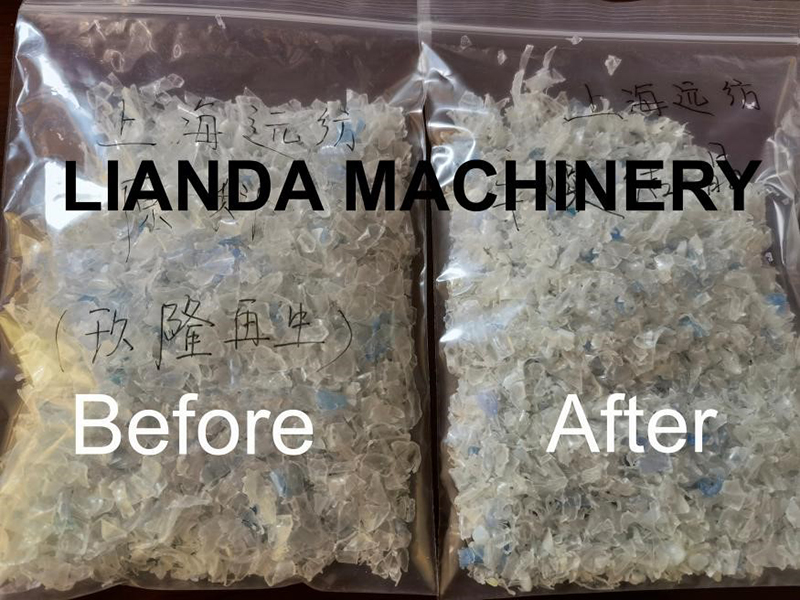

An increase of bulk density by 10 to 20% can be achieved in the IRD, significantly improving feed performance at the extruder inlet and enhancing filling performance on the screw.

Frequently Asked Questions

What materials are suitable for this pelletizing line?This machine handles PET/BOPET bottle flakes, films, fibers, waste cloth, and PA66 materials.

How does the IRD system improve IV stability?The IRD system provides homogeneous pre-drying, preventing hydrolysis and reducing IV loss during extrusion.

What is the drying time for PET flakes?The drying process is efficient, requiring only 15-20 minutes to reach a moisture level of ≤ 50ppm.

Does this machine improve production output?Yes, by increasing the bulk density of flakes by 10-20%, it improves feed performance and screw filling efficiency.

Is this equipment energy-efficient?Yes, the IRD system consumes less than 80W/KG/H, optimizing operational costs.
