Drying is the single most important variable in the processing. We work closely with resin suppliers and processors to develop equipment and procedures that eliminate moisture-related quality issues while maximizing energy efficiency.

• Adopt rotation drying system to ensure uniform drying.
• Excellent mixing capability preventing sticking or clumping during processing.
• No segregation of products with different bulk densities.

Energy Consumption & Performance

Our IRD users report energy costs as low as 0.08kwh/kg without sacrificing quality. Key advantages include:

• Total process visibility through advanced PLC control systems.
• Achieve 50ppm moisture levels in just 20 minutes via one-step drying & crystallization.
• Wide range of industrial applications.
• Limit hydrolytic degradation of viscosity.
• Prevent increasing AA levels for food-contact materials.
• Increase production line capacity by up to 50%.

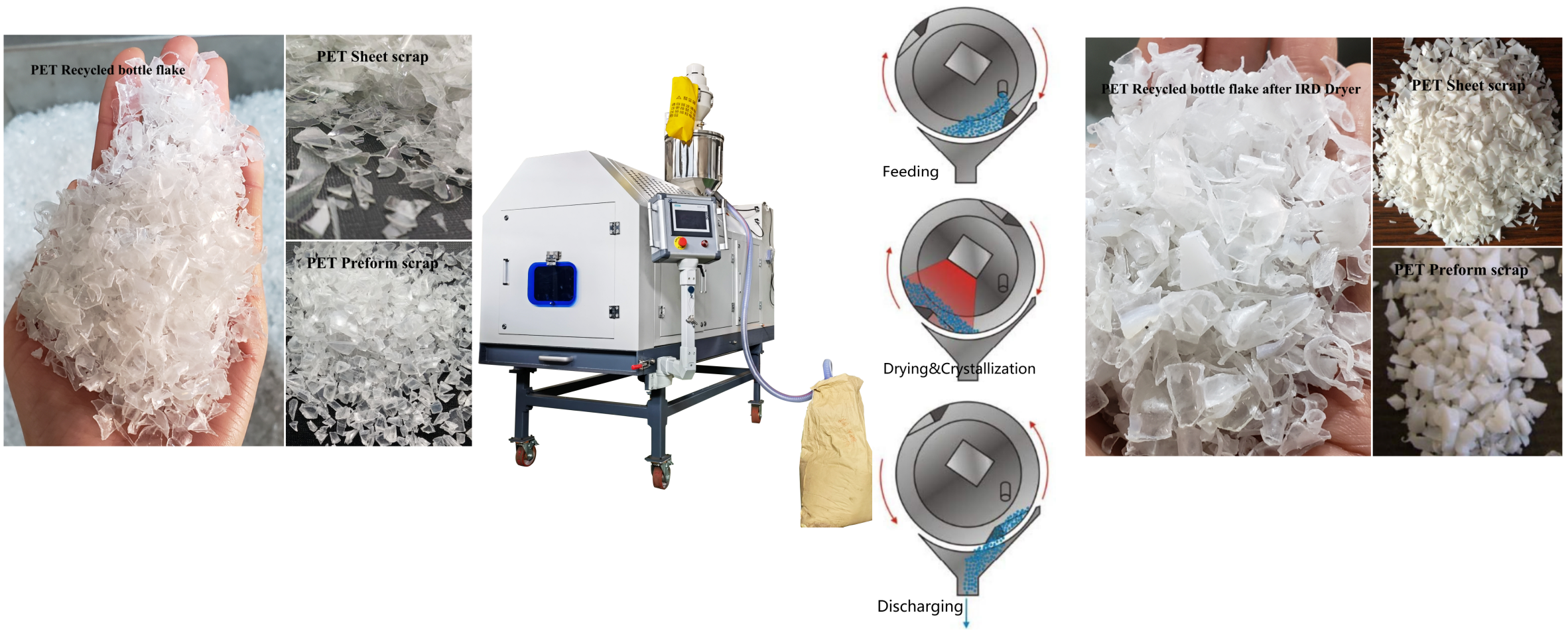

Process Technology

1. Initial Heating: Slow drum rotation with high infrared lamp intensity to rapidly raise resin temperature to the preset target.

2. Drying & Crystallization: Drum speed increases to prevent clumping. Infrared power is optimized to finish the process efficiently within 15-20 minutes.

3. Automatic Discharge: The system automatically discharges material and refills the drum for the next cycle, with all parameters saved as recipes in the touch screen control.
